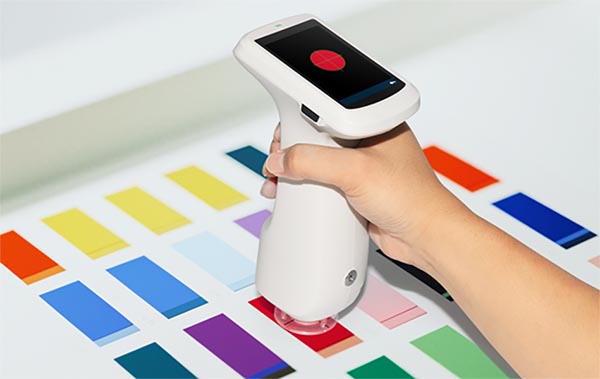

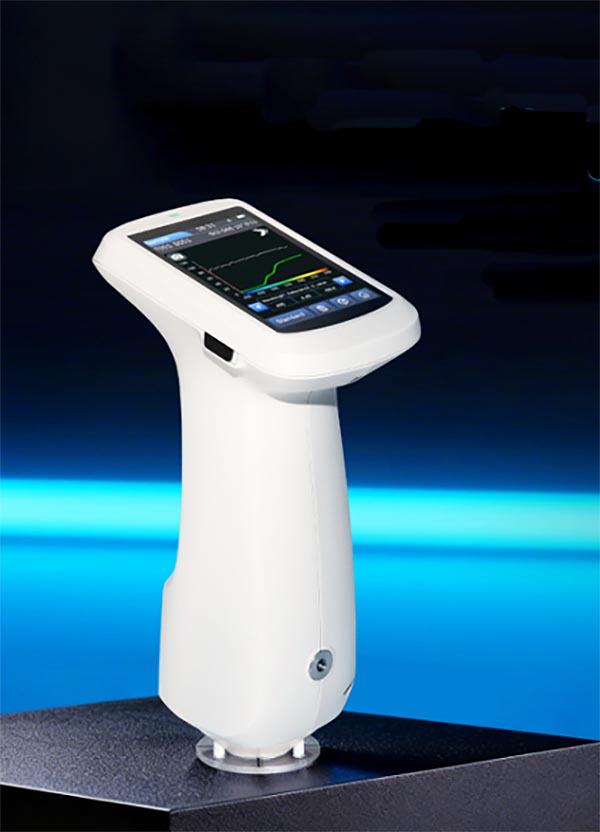

KS-100 SPECTROCOLORIMETER –
SMART COLOR CONTROL SOLUTION
The KS-100 spectrocolorimeter is an entry-level device
specifically designed for routine color testing and measurement processes. With
the motto "Minimum Training, Maximum Efficiency," the KS-100 offers
stability, high reliability, and a flexible design, making it easy to operate
even for beginners.
This product is officially distributed by Le Dan Company,
perfectly meeting the color quality management needs of factories and
laboratories.
KEY FEATURES OF THE KS-100
1. High Accuracy and Stability
The instrument is equipped with a dual 18-segment silicon
photodiode array and nano-integrated spectral technology.
This ensures impressive repeatability with ΔEab ≤ 0.028
and inter-instrument agreement of only ΔEab ≤ 0.35.
The full-spectrum balanced LED light source covers the
400-700nm wavelength range, ensuring uniform spectral distribution and avoiding
the shortcomings of conventional white LEDs.
2. International Standard Optical Technology
It utilizes a globally recognized D/8 optical system
(integrating SCI/SCE technology).
The device strictly complies with international
measurement standards such as CIE, ISO, ASTM, and DIN.
3. Intelligent Dual Positioning for All Surfaces
Equipped with a dual positioning system: using a real-time
camera combined with a stabilizing plate, it accurately locks the measurement
area and minimizes operation errors.

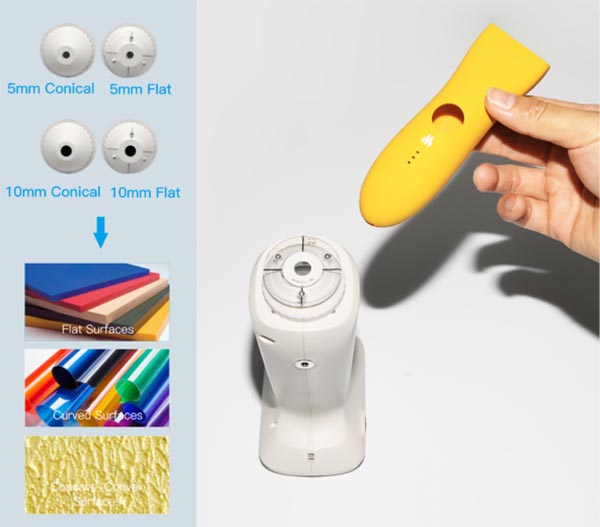

Comes with 4 diverse measuring apertures: 5mm (flat and
conical tip) and 10mm (flat and conical tip).
Flexible measurement on flat, curved, or uneven surfaces.
4. Multi-Platform Connectivity & Cloud Management
The device supports seamless data interaction via USB and
Bluetooth with multiple operating systems: Android, iOS, Windows, HarmonyOS,
and WeChat Mini Programs.
Allows cloud storage, allowing users to build personal
color databases and share data in real time without carrying physical color
cards. Includes professional quality management software SQCX (for PC) and
MOBCC (mobile app) for report generation and color analysis.
MULTI-INDUSTRY APPLICATIONS
The KS-100 colorimeter supports flexible measurement mode
switching, meeting quality control (QC) needs for various industrial sectors:
· Plastics &
Electronics.
· Textiles & Dyeing.
· Paints & Coatings.
· Printing & Paper
Products.
· Ceramics &
Cosmetics.
TECHNICAL SPECIFICATIONS
|
Specifications
|
Parameters
|
|
Measurement Angle / Optical System
|
D/8 (diffuse illumination, 8-degree detection angle),
SCI/SCE.
|
|
Sensor
|
Silicon diode array
(2 rows, 18 groups).
|
|
Wavelength range:
|
400 - 700nm.
|
|
Color space:
|
CIE LAB.
|
|
Color deviation formula:
|
 E*ab.
|
|
Measurement time:
|
Approximately 1 second.
|
|
Measurement aperture:
|
4 apertures: 5mm (flat + cone), 10mm (flat + cone).
|
|
Display:
|
3.5-inch TFT capacitive touchscreen, true color display.
|
|
Power supply:
|
3.7V, 3200mAh Lithium battery (8000 measurements in 8
hours).
|
|
Data storage:
|
Standard 200 samples, Test samples 10,000 samples; Large
storage on PC.
|
|
Optional accessories:
|
Mini thermal printer, Powder test box.
|
CONTACT FOR ORDERING &
TECHNICAL CONSULTATION
For in-depth consultation on the configuration of the
KS-100 spectrophotometer and to receive the best price quote for your business,
please contact Le Dan Company directly.
Delivery method: Nationwide.
- Free in city. HCM
- In the station or express delivery if the customer in outside the province (customers pay shipping costs themselves)
Commitment to customers:
==> Supplying genuine goods (CO / CQ attached), 100% new (with the original belt)
==> Ensure customer's interests when buying products while in warranty, and maintenance for life.
=============== ///=============
