OVERVIEW OF LINSHANG UV METERS:

Linshang offers a wide range of UV meters with specialized sensor technology for each type of UV rays (UVA, UVB, UVC, UV LED) and different types of UV lamps. The products have a compact design, high accuracy, many features to support measurement, statistics, storage and modern data transmission serving industries from medical to printing and disinfection industries.

Linshang's UV meters have many different lines, each line has its own characteristics, technical features and uses suitable for different UV sources such as UVA, UVB, UVC, UV LED, high pressure mercury lamps, UV LED lamps, ultraviolet disinfection lamps, and many other industrial applications.

LINSHANG'S TYPICAL UV LIGHT METERS:

Here is detailed information about some typical UV light meters of Linshang:

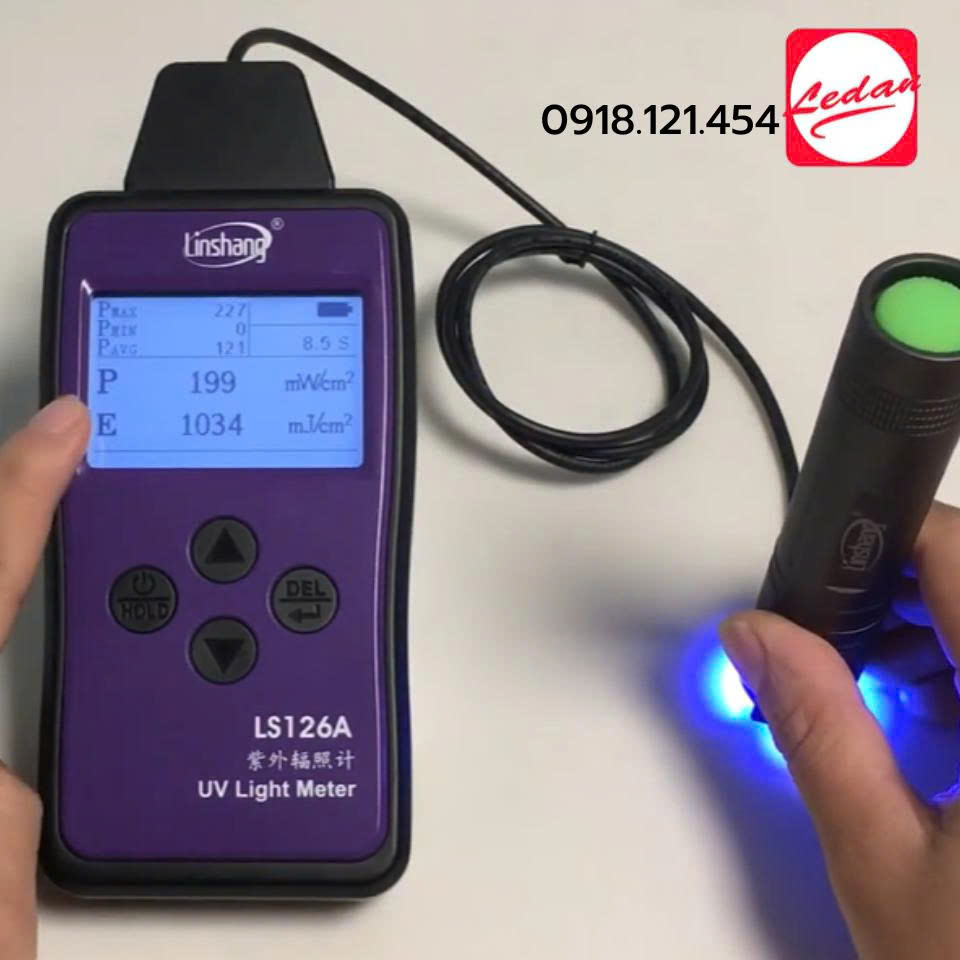

1. LS126A UV Light Meter

- Wavelength range: 340nm-420nm (corresponding to UV LED)

- Features: Ultra-small measuring head, suitable for measuring in narrow spaces, data acquisition speed 2048 times/second

- Intensity measurement range: 0 – 20000 mW/cm²

- Application: Measure the intensity and energy of UV LED in narrow applications, from medical, printing industry to UV safety testing

- Compact size and weight, with LCD screen, using AAA batteries.

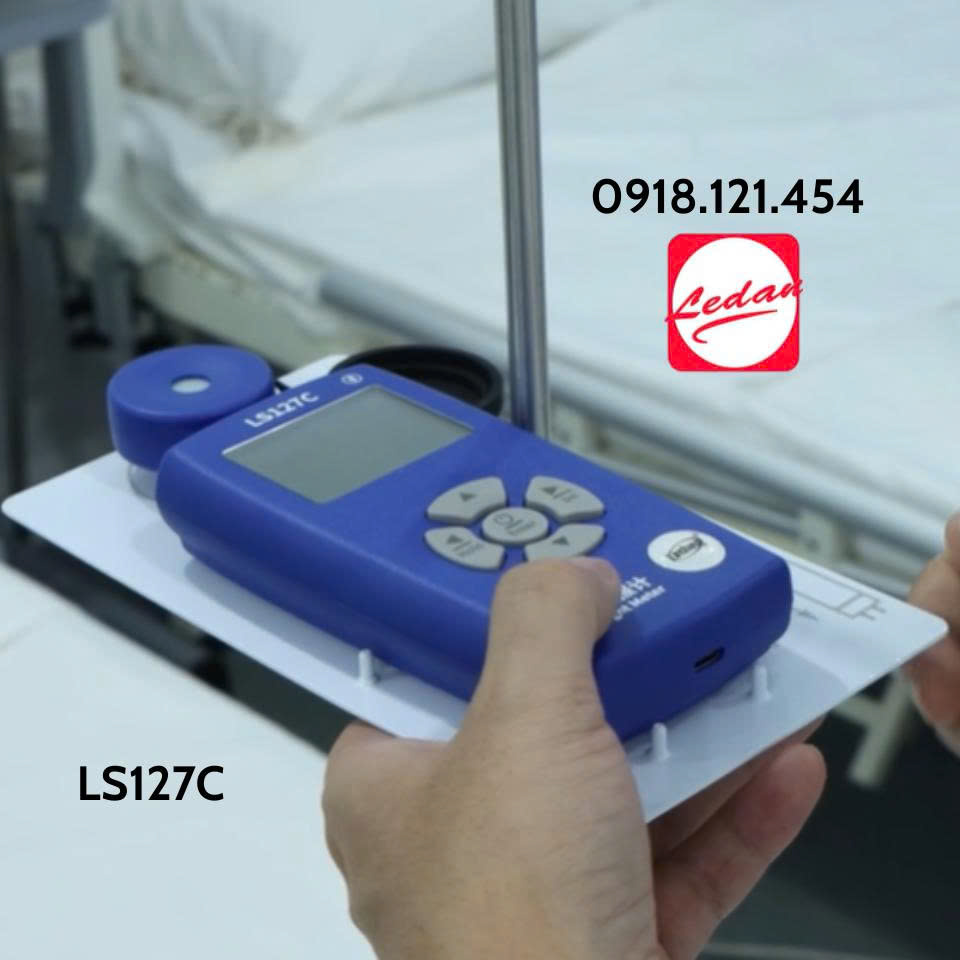

2. LS127C Integrated UV Light Meter

- Measures the intensity and energy of UVC rays used for 253.7nm germicidal lamps (low pressure mercury lamps)

- Has Bluetooth connection, phone app for remote monitoring

- Measuring range: 0 - 20000 μW/cm²

- Uses: Test and monitor ultraviolet rays used in medicine, sterilization and applications requiring precise UVC rays

- LCD screen displays many types of statistical values ​​such as max, min, average, measurement time.

3. LS125 UV Light Meter

- Wavelength range: 315nm-400nm, focusing on UVA

- Supports multiple UVA, UVB, UVC probes, with warning of exceeding safety thresholds

- Applications: Test UV equipment, UV drying process, UV radiation safety in medicine and printing industry

- Data storage memory, rechargeable battery, sturdy, impact-resistant case.

4. LS128 UV Energy Meter

- Wavelength range: 340nm-420nm, specialized in measuring UV LED energy

- Two measurement modes (manual and automatic according to trigger threshold)

- Integrated PC software to export reports and measurement data

- Withstand high temperatures up to 100°C, measure actual temperature in the device's operating environment

5. LS120, LS136, LS138

- Used for measuring high pressure mercury lamps, gallium lamps, iron lamps, halogen lamps, xenon lamps, other common UV light sources

- Often used in measuring and testing UV energy and intensity on a variety of industrial light sources.

HOW TO USE CORRECTLY & EFFECTIVELY

To take advantage of the capabilities of the LS126A / LS126C / LS127C models, you should apply:

1. Select the correct model/probe corresponding to the target wavelength

– LED UV (UVA): use LS126A

– UVC (254 nm): use LS126C or LS127C

2. Calibration / zero

– Completely turn off the environmental UV source before measuring the baseline zero

– If the probe/host supports multi-point calibration, perform calibration according to the instructions

3. Position the probe at the correct distance & direction of measurement

– With the UVC lamp, use a 1 m hook to hang the probe exactly 1 m from the lamp (sterilization measurement standard).

– Probe placed perpendicular to the projection wire, avoid tilt

4. Multi-point measurement / accumulation time

– For coating/LED applications: measure multiple surface locations for uniform assessment

– With UVC lamps: allow energy accumulation time to determine disinfection efficiency

5. Avoid extraneous light & interference

– Shield the measurement environment from other UV light (sun, fluorescent lamps)

– Avoid placing the probe in high current / electromagnetic interference areas
