  3. Needle Detector
Product

Needle Detector

Price: Contact us

  1. Adopting ABS shell, aesthetic appearance;
  2. The amount of qualified products, unqualified products and the total amount of products can be caculated.
  3. Applicable for thick or super-thin objects separately.
  4. Has the alarm system when the belt leaves the normal track, to ensure the life length of the belt as long as it can be
  5. Equipped with auto-starting device
  6. With the design of environment protection concept, auto electricity saving
  7. With environment monitor and location indicator for broken needle
  8. Auto alarming and auto return fuction.
  9. High anti-disturbance and stability, strong reliability, high sensitivity

100% Genuine

Price: Contact us

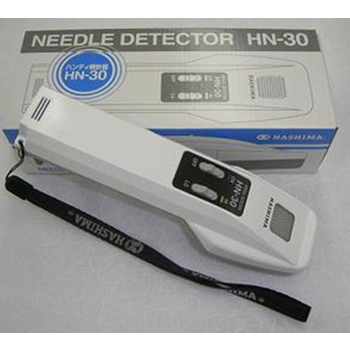

Detecting Method:          Magnetic induction
Detecting Ability:         Fe¢ 0.8mm
Sensibility Set:           Lo: 1.2mm Hi: 0.8mm
Detecting Area:            35（W）×50（L)mm
Alarm Mode:                Beep and Lamp
Power Supply:              9V Dry Battery×1
External Dimension:        55(W)×165(L)×45(H)mm
Weight:                    (approx.) 200g

100% Genuine

Price: Contact us

Detecting Mode :           Magnetic Induction
Detecting Ability:         Φ2.0mm Ferrous Fragment
Detecting Adjustment:      Step-less Adjustment
Detecting Width:           600mm
Detecting Height:          300mm(Standard Type）
Alarm Mode :               Beep
Belt Speed:                (approx.)30m/min
Power Supply:              Single-phase 220V,50HZ
Rated Output:             (approx.)110W
Dimension:                 1650(L)x1050(W)x960(H)mm
Weight:                   (approx.)250KG

100% Genuine

Price: Contact us

Detecting Mode :           Magnetic Induction
Detecting Ability:         Φ1.20mm Ferrous Fragment
Detecting Adjustment:      Step-less Adjustment
Detecting Width:           600mm
Detecting Height:          200mm(Standard Type）
Alarm Mode :               Beep
Belt Speed:                (approx.)30m/min
Power Supply:              Single-phase 220V,50HZ
Rated Output:             (approx.)110W
Dimension:                 1650(L)x1050(W)x960(H)mm
Weight:                   (approx.)250KG

100% Genuine

Price: Contact us

Detecting Method:       Magnetic induction

Detecting Ability:      Ferrous Fragment (0.75×3.0）

Sensibility Set:        Lo: 20-30mm Hi: 30-40mm

Detecting Area:         25（W）×60（L)mm

Alarm Mode:             Beep and Lamp

Power Supply:           9V Dry Battery×1

External Dimension:     65(W)×145(L)×45(H)mm

Weight:                (approx.) 280g

100% Genuine

Price: Contact us

Enntech HD-760CE needle detector is used to detect broken needles in the sewing process and in the manufacture of textiles and footwear.
Advantages:
The machine is controlled by computer, full channel oscillator four-line detector is stable, accurate and efficient.
The machine has the function of counting the number of hits, the number of disqualifications and the total number
Conveyor can be adjusted automatically by the parameters on the control screen
Automatic control switch to avoid pressing start button frequently
Environmentally friendly
The position of the broken needle is displayed, which makes it easier to find broken needles
Indicator when detect broken needle, conveyor automatically returns product. Placement of defective product returns can be set based on garment size

100% Genuine

Price: Contact us

Needle detectors are specialized for conventional clothing
Detecting Mode :           Magnetic Induction
Detecting Ability:         Φ0.8mm Ferrous Fragment
Detecting Adjustment:      Step-less Adjustment
Detecting Width:           600mm
Detecting Height:          100mm(Standard Type）
Alarm Mode :               Beep and Lamp
Belt Speed:                (approx.)30m/min
Power Supply:              Single-phase 220V,50HZ
Rated Output:             (approx.)180W
Dimension:                 1650(L)x1000(W)x950(H)mm
Weight:                   (approx.)250KG

100% Genuine

Price: Contact us

Enntech ST6000FZ-20 needle detector for use in footwear and textiles
Detecting Mode :           Magnetic Induction
Detecting Ability:         Φ1.5mm Ferrous Fragment
Detecting Adjustment:      Step-less Adjustment
Detecting Width:           600mm
Detecting Height:          200mm(Standard Type）
Alarm Mode :               Beep and Lamp
Belt Speed:                (approx.)30m/min
Power Supply:              Single-phase 220V,50HZ
Rated Output:             (approx.)180W
Dimension:                 1650(L)x1000(W)x1050(H)mm
Weight:                   (approx.)250KG

100% Genuine

Price: Contact us

Dedicated needle detector for thick clothing inspection
Detecting Mode :           Magnetic Induction
Detecting Ability:         Φ1.2mm Ferrous Fragment
Detecting Adjustment:      Step-less Adjustment
Detecting Width:           600mm
Detecting Height:          150mm(Standard Type）
Alarm Mode :               Beep and Lamp
Belt Speed:                (approx.)30m/min
Power Supply:              Single-phase 220V,50HZ
Rated Output:             (approx.)180W
Dimension:                 1650(L)x1000(W)x1000(H)mm
Weight:                   (approx.)250KG

100% Genuine

Price: Contact us

Detecting Mode :           Magnetic Induction
Detecting Ability:         Φ2.0mm Ferrous Fragment
Detecting Adjustment:      Step-less Adjustment
Detecting Width:           600mm
Detecting Height:          300mm(Standard Type）
Alarm Mode :               Beep and Lamp
Belt Speed:                (approx.)30m/min
Power Supply:              Single-phase 220V,50HZ
Rated Output:             (approx.)180W
Dimension:                 1650(L)x1000(W)x1050(H)mm
Weight:                   (approx.)250KG

100% Genuine

Price: Contact us

Detection method: magnetic induction
Detection capability: Fe ¢ 0.8mm
Sensitivity adjustment: Low: 20 - 30 mm; Height: 30 - 40mm
Detection area: 25 (W) × 50 (L) mm
Alarm mode: sirens and lights
Power supply: 9V battery
Outside Dimensions: 55 (W) × 165 (L) × 45 (H) mm
Weight: (approx.) 200g

100% Genuine

Price: Contact us

  1. Hashima HN-790G needle detector for detecting broken needles in sewing and iron pieces in textiles and footwear
  2. The needle detector is controlled by LCD screen, the probe is designed closed loop, stable operation, accurate, effective.
  3. The Hashima needle detector has the function of counting the number of standard products, the number of substandard products and the total quantity of products during the inspection.

100% Genuine

Price: Contact us

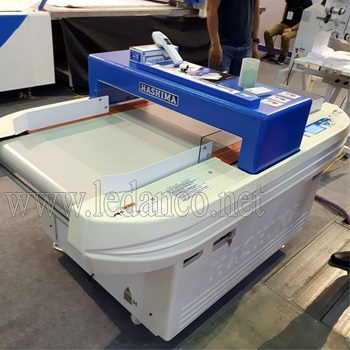

  • The Hashima HN-780G needle detector is used to detect broken needles in sewing and iron pieces in textiles, leather and footwear.
  • Detection mode: magnetic touch
  • Detection capability: iron Φ0.8mm
  • Width of detector: 600mm
  • Port height detection: 100mm
  • Sound signaling: Beep
  • Conveyor speed: (approx.) 30m / min
  • Power supply: 220V, 50Hz
  • Power Consumption: 110W
  • Dimensions: 1650 (L) x1050 (W) x920 (H) mm
  • Weight: (about) 250kg

100% Genuine

Price: Contact us

  1. Conveyor metal detectors feature detecting broken needles and magnetic metals in apparel, textile and many other fields.
  2. Hashima HN-880C needle detector is a model produced in 2020, with improved features and features superior to the previous HN-870C.

100% Genuine

Price: Contact us

  1. Detecting Mode :          Magnetic Induction
  2. Detecting Ability:         Φ1.0mm Ferrous Fragment
  3. Detecting Adjustment:  Step-less Adjustment
  4. Detecting Width:           600mm
  5. Detecting Height:          140mm(Standard Type）
  6. Alarm Mode :                Beep
  7. Belt Speed:                  (approx.)30m/min
  8. Power Supply:              Single-phase 220V,50HZ
  9. Rated Output:             (approx.)110W
  10. Dimension:                 1650(L)x1050(W)x960(H)mm
  11. Weight:                      (approx.)250KG

100% Genuine

Price: Contact us

Detecting Mode :           Magnetic Induction
Detecting Ability:         Φ0.8mm Ferrous Fragment
Detecting Adjustment:      Step-less Adjustment
Detecting Width:           600mm
Detecting Height:          300mm(Standard Type）
Alarm Mode :               Beep
Belt Speed:                (approx.)30m/min
Power Supply:              Single-phase 220V,50HZ
Rated Output:             (approx.)110W
Dimension:                 1650(L)x1050(W)x960(H)mm
Weight:                   (approx.)250KG

100% Genuine

Price: Contact us

Detecting Mode:           Electro-magnetic induction
Detecting Ability:        Fe Φ1.20mm
Sensitivity Adjustment:   Step-less adjustment
Detecting Width:          380mm (Standard Type)
Detecting Height:         160mm
Alarm Mode:               Beep and Lamp
Belt Speed:               (approx.) 30m/min
Power Supply:             Single-phase 220V, 50HZ
Power Supply:            (approx.) 90W
Dimension:               1200(L)×690(W)×800(H)mm

100% Genuine

Price: Contact us

Enntech ST7500ZX needle detector specially designed for cartons
Detecting Mode:         electro-magnetic induction
Detecting Ability:      Fe Φ3.5mm
Detecting Adjustment:    Step-less adjustment
Detecting Width:         750mm (Standard Type)
Detecting Height:        380mm
Alarm Mode:              Beep
Belt Speed:               (approx.) 30m/min
Power Supply:             Single-phase 220V, 50HZ
Rated Output:            (approx.) 260W
Dimension:               1700(L)×1150(W)×1250(H)mm
Weight:                 (approx.) 280kg

100% Genuine

Price: Contact us

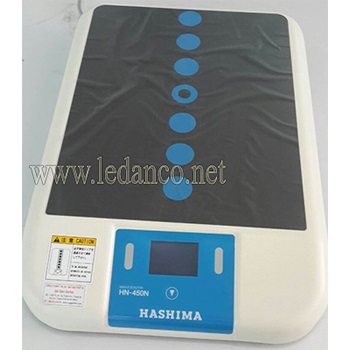

Detecting Method:       Magnetic induction

Detecting Ability:      110mm (steel needle φ0.6mm×L33mm)

Sensibility Set:        6 step change(with indicator)

Detecting Area:         80（W）× 450（L)mm

Alarm Mode:             Beep and Lamp

Power Supply:           220V

External Dimension:     400(W)×680(D)×70(H)mm

Weight:                (approx.) 11 kg

100% Genuine

Price: Contact us

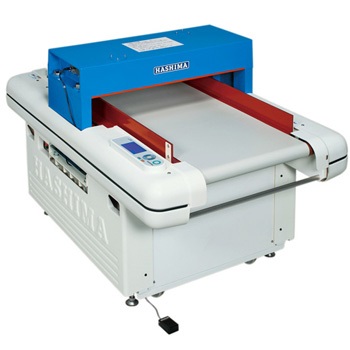

The Hashima HM-6000 detector is capable of detecting all metals
Accurate detection by sensors designed on transducers
Displays the metal position on the screen
Large LCD display capable of displaying the operation. Allows various settings such as sensitivity, language, and so on
Accurate sensitivity adjustment with 100 steps and the best sensitivity can be set for the corresponding product
Conveyor with reverse function after metal detection.
Optional software will help to test the product smoothly.

100% Genuine

Price: Contact us

Detecting Mode:        electro-magnetic induction
Detecting Ability:     Fe Φ0.8mm
Detecting Adjustment:  Step-less adjustment
Detecting Width:       600mm (Standard Type)
Detecting Height:      100mm
Alarm Mode:            Beep
Belt Speed:            (approx.) 30m/min
Power Supply:          Single-phase 220V, 50HZ
Rated Output:          (approx.) 165W
Dimension:             2300(L)×1180(W)×950(H)mm
Weight:                (approx.) 360kg

100% Genuine

Price: Contact us

  1. Detecting Mode :           Magnetic Induction
  2. Detecting Ability:         Φ1.5mm Ferrous Fragment
  3. Detecting Adjustment:      Step-less Adjustment
  4. Detecting Width:           600mm
  5. Detecting Height:          180mm(Standard Type）
  6. Alarm Mode :               Beep
  7. Belt Speed:                (approx.)30m/min
  8. Power Supply:              Single-phase 220V,50HZ
  9. Rated Output:             (approx.)110W
  10. Dimension:                 1650(L)x1050(W)x960(H)mm
  11. Weight:                   (approx.)250KG

100% Genuine

Price: Contact us

Detecting Mode:        electro-magnetic induction
Detecting Ability:     Fe Φ1.20mm
Detecting Adjustment:  Step-less adjustment
Detecting Width:       1200mm (Standard Type)
Detecting Height:      150mm
Alarm Mode:            Beep
Belt Speed:           (approx.) 30m/min
Power Supply:          Single-phase 220V, 50HZ
Rated Output:         (approx.) 225W
Dimension:             1650(L)×1580(W)×1000(H)mm
Weight:               (approx.) 400kg

100% Genuine

Price: Contact us

Detecting Mode:        electro-magnetic induction
Detecting Ability:     Fe Φ0.8mm
Detecting Adjustment:  Step-less adjustment
Detecting Width:       600mm (Standard Type)
Detecting Height:      100mm
Alarm Mode:            Beep
Belt Speed:            (approx.) 30m/min
Power Supply:          Single-phase 220V, 50HZ
Rated Output:          (approx.) 165W
Dimension:             2300(L)×1180(W)×950(H)mm
Weight:                (approx.) 360kg

100% Genuine

Page 1 of 3 1 2 3 >
