Automatic labeling machine
Standing surface adhesive

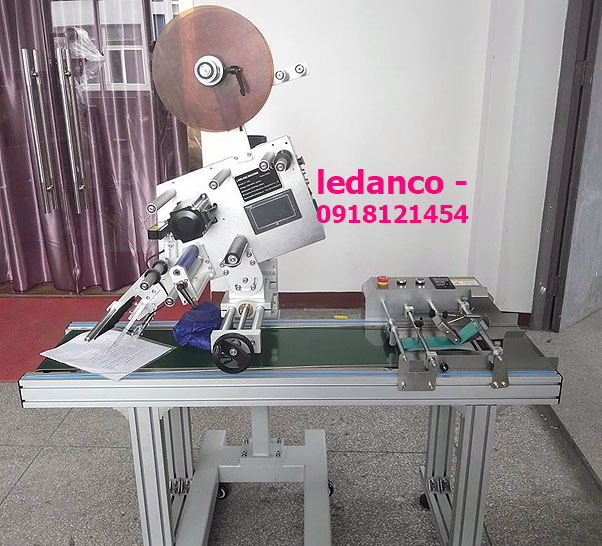

labeling machine with auto feeding device – Model SL-170 serves very well in many production and service areas : Food, Medical, Pharmaceutical, General products..etc...
Liquid glue labeling machine is also called cold glue labeling machine. The machines coat the liquid labels to paper labels’ back’, and paste the paper labels to glass or metal rounds bottles and jars.
This machine is widely used for the labeling of the round objects in such industries as food, medicine, daily chemical and so on. Mostly, the bottles are round and glass; the glue is water soluble resin glue.
- LD-DLMA Front&back sides labeling machine(two labels) for labeling square bottles.
- It is used in many factories producing lubricants, edible oils, shampoos ... in the food, cosmetic, pharmaceutical and lubricant sectors.
- Full automatic labeling machine with conveyor belt can be combined with production line and high automation.
- Large capacity, suitable for high volume production plants.
- Components of the machine are imported directly in Germany.
- The shell is covered with stainless steel, making the machine more luxurious.
LD-UDPM automatic top and bottom sides labeling machine is used to paste two decals labeling at the same time on the top and bottom of the product. The labeling machine is designed and assembled according to European standards, giving the luxury in the process of use, the shell is covered with stainless steel.
- Designed in accordance with European standards, to bring comfort in use.
- Simple operation, suitable for workers in the production process.
- Automatic labeling machine can be combined with many different production lines.
- Model: LD-DPM
- Labeling head : optional Chinese / German
- Capacity (product / min) 20-140
- Labeling way: Top labeling
- Conveyor speed ≤40 (m / min)
- Product size: Can customize depending on label size
- Label Size Height 20-120mm; Length 25-300mm
- Engine power: 500W
- Machine Dimensions: 2000 (L) × 800 (W) × 900 (H) mm
- LD-HPLM Automatic High-speed rotary labeling machine (one label)
- Model LD-HPLM
- Driving Mode Servo motor
- labeling method Stand in, stand labeling, stand out
- Capacity 300-600（bottle/min）
- Conveyor speed（m/min） ≤40
- Labeling Accuracy ±1.0mm
- The size of bottle Outer diameter 20-100mm, height 25-195mm
- The size of label Width 20-100 mm length 25-160 mm
- Power（w） 1000W
- Model: LD-PLMS
- Monitor Control: LCD
- Direction of operation: Left or Right
- Labeling accuracy: ± 1.0 mm
- Capacity (product / min): 10-70
- Conveyor speed (m / min): ≤35
- Product size: can be customized according to sample
- Label size: Customizable by sample
- Internal diameter of 76mm roll label
- External diameter of roll label 350mm (max)
- Engine power (w): 1000W
- Machine weight (kg): 300
- Machine dimensions (mm): 2300 (L) × 800 (W) × 1500 (H) mm
- Machine Model: LD-PLM
- Monitor Control: LCD
- Direction of operation: Left or Right
- Labeling accuracy: ± 1.0 mm
- Capacity (product / minute): 30-160 (depending on the size of the bottle and label)
- Conveyor speed (m / min): ≤40
- Bottle Size: Customizable
- Size of label: Height 20-140mm Length 23-280mm
- Power Consumption (w): 550
- Power consumption: 220V - 50Hz / 60Hz
- Model LD-PWM
- Yield（pcs/min） 30-230
- Driving Mode Servo motor
- Label Specifications Adhesive sticker transparent or opaque label
- The application of bottle Outer diameter 12-24mm Height 25-95mm
- The application of label Height 20-70mm Length 25-80mm
- Printer to use air 5kg/cm ²
- The power of motor（w） 300W
- Size appearance（mm） 1800（L） 700（W） 1270（H）mm
- Model: LD-104S-2D
- The Flat Bottle Front & Back Labeler Labeling Machine at the same time
- Capacity (bottles / minute): 30-200
- Belt dimension: Left or right
- Conveyor speed (m / min): ≤40
- Accuracy: ± 1.0 mm
- Internal diameter of roll label: 76 mm
- External diameter of roll label: 350 mm (max)
- Label size: Width 15-300 mm in length 15-300 mm
- Bottle Size: Customizable
- Voltage: 220V 50 / 60HZ
- Weight (kg): 380
- Model LD-104S
- Yield（pcs/min） 30-200
- Operating direction Left or Right
- Conveyor Speed（m/min） ≤40
- Labeling Accuracy ±1.0 mm
- The inner diameter of label roll 76 mm
- The outer diameter of label roll 350 mm(max)
- The suitable size of label Width 15-300 mm length 15-300 mm
- The suitable size of labeling objects Can customized
- Printer use air 5kg/cm ²
- Voltage 220V 50/60HZ
- Power（w） 550W
- Weight（kg） 260
- Machine size 1800（L） 800 (W) 1500 (H) mm
