OVERVIEW OF LINSHANG PAINT THICKNESS GAUGE:

Automotive paint thickness gauge is an essential tool in the industry, supporting manufacturers and technicians to control the quality of paint layers, ensuring that products meet the highest standards.

Automotive paint thickness gauge has important applications in vehicle quality inspection, specifically:

• Ensure the quality of paint and coating layers meets technical requirements, helping to protect metal surfaces from corrosion and increase the aesthetics of the vehicle. The device quickly and accurately checks paint thickness, avoiding paint layers that are too thick or too thin, reducing durability and affecting production costs.

• Detect signs of previous vehicle repairs by identifying unusual differences in paint thickness between areas on the vehicle, thereby accurately assessing the condition of the vehicle.

• Check the corrosion and rust on the metal parts of the vehicle by measuring the thickness of the protective coating, helping users and manufacturers to have appropriate maintenance measures.

• Save paint materials, avoid waste due to spraying paint too thickly and reduce the rate of errors that need to be repaired, improve efficiency and quality of work in the car production and repair process.

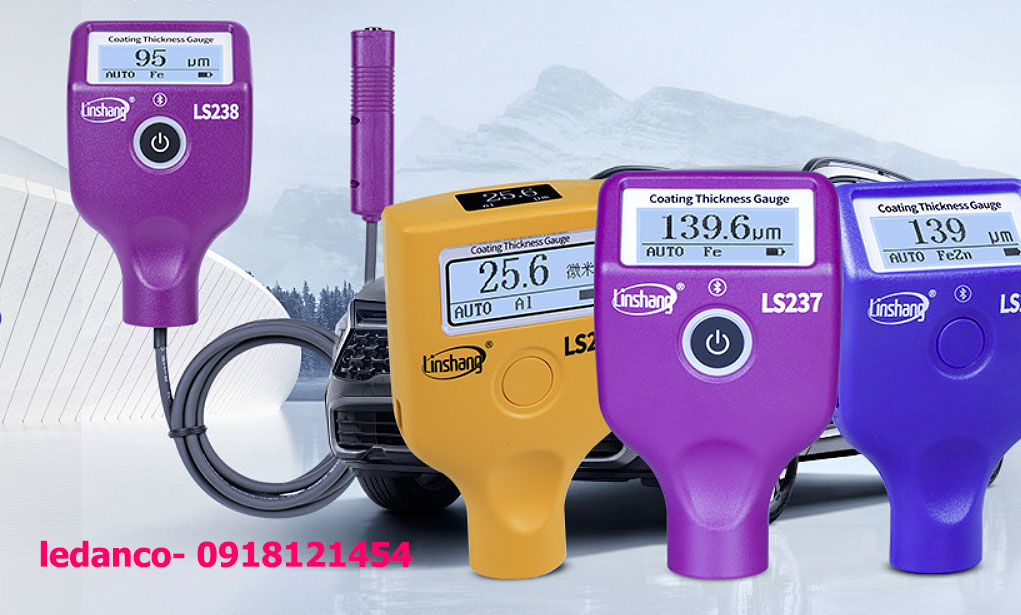

LINSHANG PAINT THICKNESS METER HAS THE FOLLOWING MODELS:

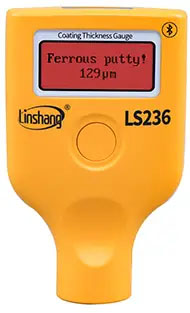

1) LS236 - standard version, compact (integrated probe)

• Machine type: integrated probe; press to set - quick measure for field inspection.

• Recognition: automatically recognize Fe/Al, recognize plastic, metal putty, galvanized steel.

• Typical measuring range: 0–3500 or 0–5000 µm (depending on the market lot/version); scale resolution 0.1/1/10 µm.

• Application: used car inspectors, garages, showrooms; quick measurement of the entire body.

• Note: product page emphasizes the new recognition algorithm for putty & galvanized body.

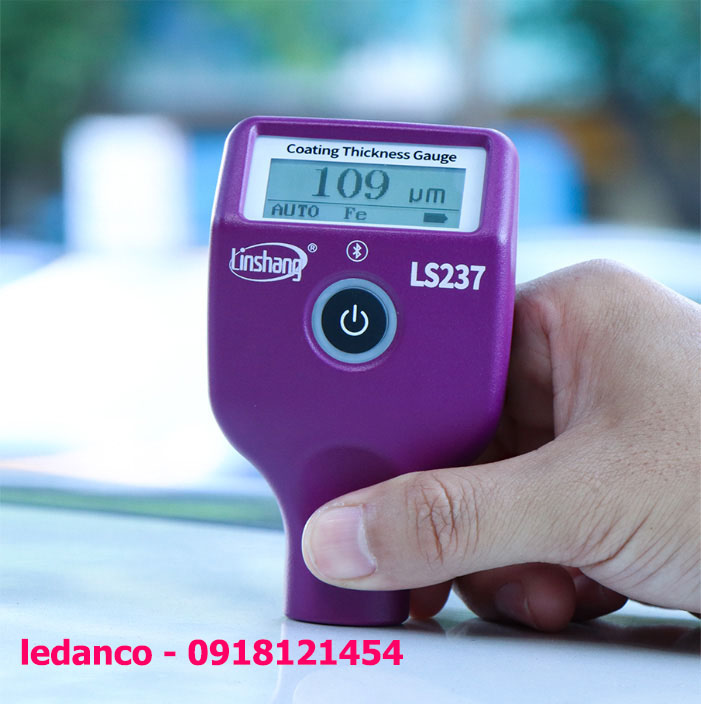

2) LS237 – advanced version, 3-color display (integrated probe)

• Model: same as LS236 but adds 3-color backlight + 3-color indicator for quick warning of thin/normal/thick.

• Recognition: Fe/Al, plastic, metal putty, galvanized (same as LS236).

• Measurement & display range: 0–5000 µm; LCD 128×48; fast response.

• Application: professional/dealer car inspection—reading color “at a glance” is very convenient when walking along the car body.

• Suggested practice threshold: original paint is mostly <170 µm (refer to Linshang's technical article).

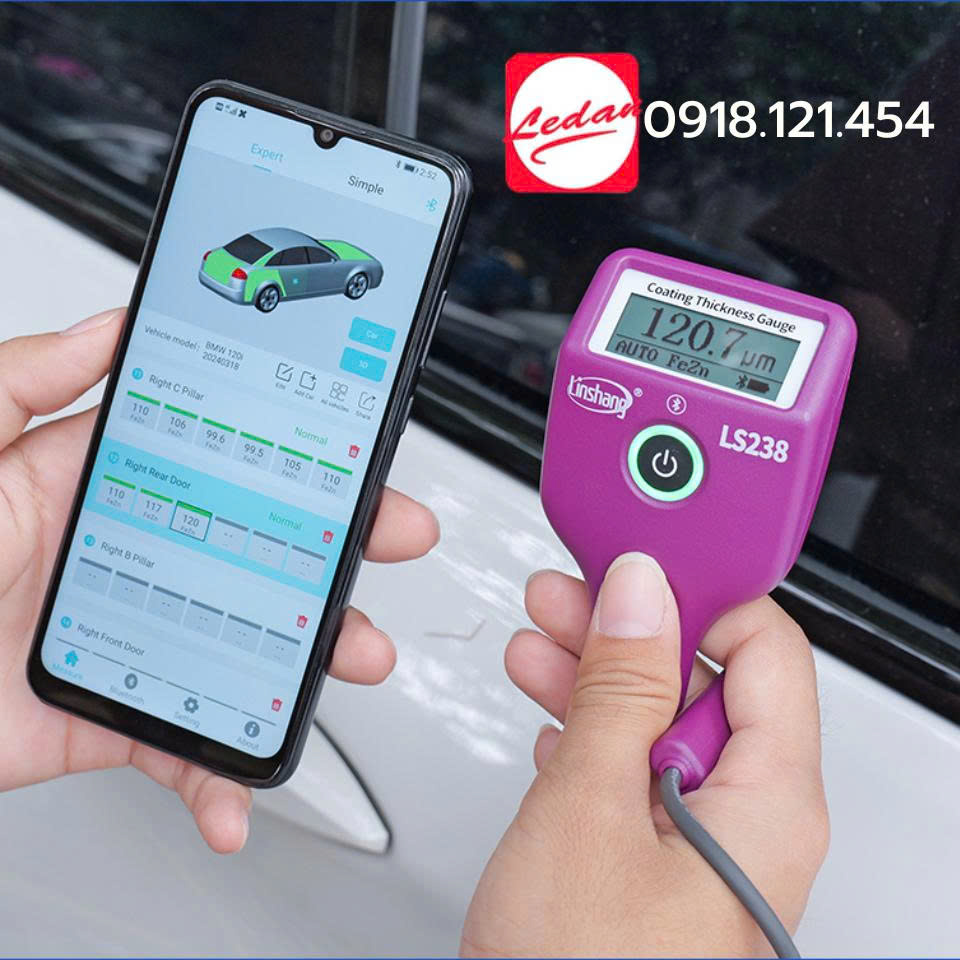

3) LS238 – split-type for tight spaces

• Model: split-wire probe—convenient for measuring wheel wells, A/B pillars, door edges, undersides.

• Detection: Fe/Al, plastic, metal putty, galvanized; same 3-color warning background as LS237.

• Measuring range & background conditions: typically Fe min 0.2 mm; Al min 0.05 mm; LCD 128×48.

• Application: tight spaces/complex curves; field survey teams.

COMPARISON OF THE ACCURACY OF LINSHANG LS236, LS237, LS238 PAINT THICKNESS GAUGE

in automotive paint inspection as follows:

Model  -  Accuracy Measuring range -  Accuracy characteristics

LS236 ≤±(3%H + 2μm) ~ 0-5000 μm Similar accuracy to LS237, suitable for testing a variety of paint layers, with color backlight to distinguish the paint thickness level.

LS237 ≤±(3%H + 2μm), H is the standard measurement value 0-3500 μm Industrial standard accuracy, wide measuring range, resolution 0.1μm to 1μm depending on the measuring range, with three-color backlight to support quick recognition of thickness.

LS238 ≤±(3%H + 2μm), H is the standard measurement value 0-5000 μm Similar accuracy to LS237, fast measurement, automatic recognition of magnetic and non-magnetic surfaces, compact design.

• All three models LS236, LS237, LS238 have the same standard accuracy of ≤±(3%H + 2μm), where H is the standard measurement value, meaning the error depends on the percentage of actual thickness plus a small fixed error of 2μm. LS237 and LS238 have wide measuring ranges and similar features, while LS236 also has the same accuracy but has the additional feature of a colored backlight to distinguish the measured paint thickness.

SUGGESTIONS FOR CHOOSING

Needs  -  Recommended Model -  Reasons

Fast measurement, one-handed operation, compact cost / LS236 Full features for recognizing Fe/Al/plastic/putty/galvanized; minimal operation.

Professional vehicle inspection, need color warning/   LS237 3 colors on screen & indicator light → fast vehicle scanning, reducing confusion.
