LINSHANG COLORIMETER,
SPECTROPHOTOMETER
LINSHANG
provides effective color measurement solutions for use in many manufacturing
industries (textiles, paints, plastics, food and coffee, etc. These meters are
currently provided by Ledanco.
GENERAL
FEATURES
• Device
type: Handheld colorimeter (colorimeter/spectrophotometer) for textiles,
paints, plastics, food, coffee.
• Color
space: Supports CIE Lab, LCh, RGB, CMYK; color difference formula (ΔE*ab,
CIEDE2000...).
•
Technology: Colorimeter (fast measurement) or spectrophotometer (400–700 nm
spectrum, reflectance curve display).
•
Communication: Connect mobile APP/PC software; some models have 3.5"
or 7" touch screen.
MODEL
DETAILS

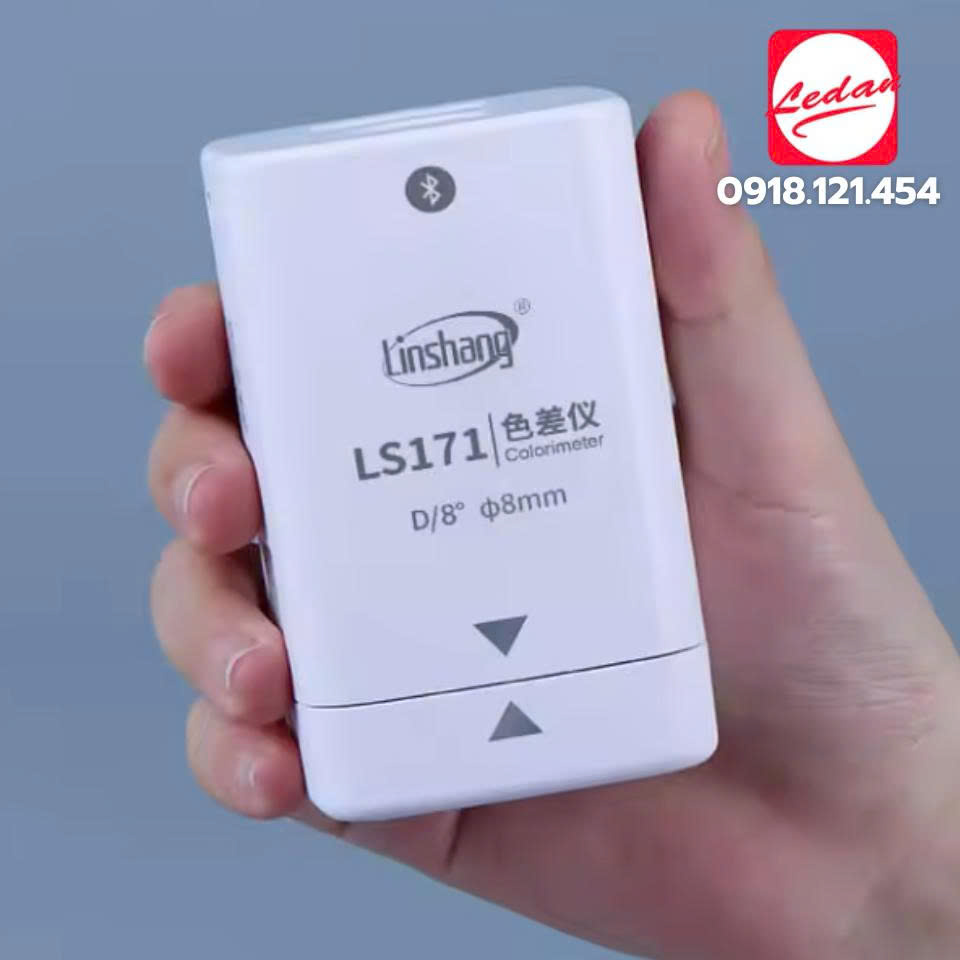

• LS171 (D/8
Colorimeter): Compact, full-spectrum LED, APP connection. Used for quick
color testing of fabrics, paints, plastic. Repeatability ΔE*ab ≤ 0.03.
• LS172
(45/0 Colorimeter): 3.5" IPS touchscreen, fast color code matching.
Suitable for textile and printing QC. Repeatability ΔE*ab ≤ 0.03.

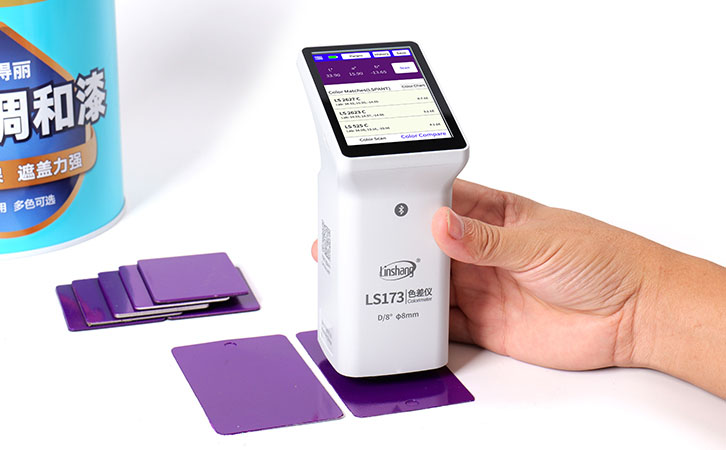

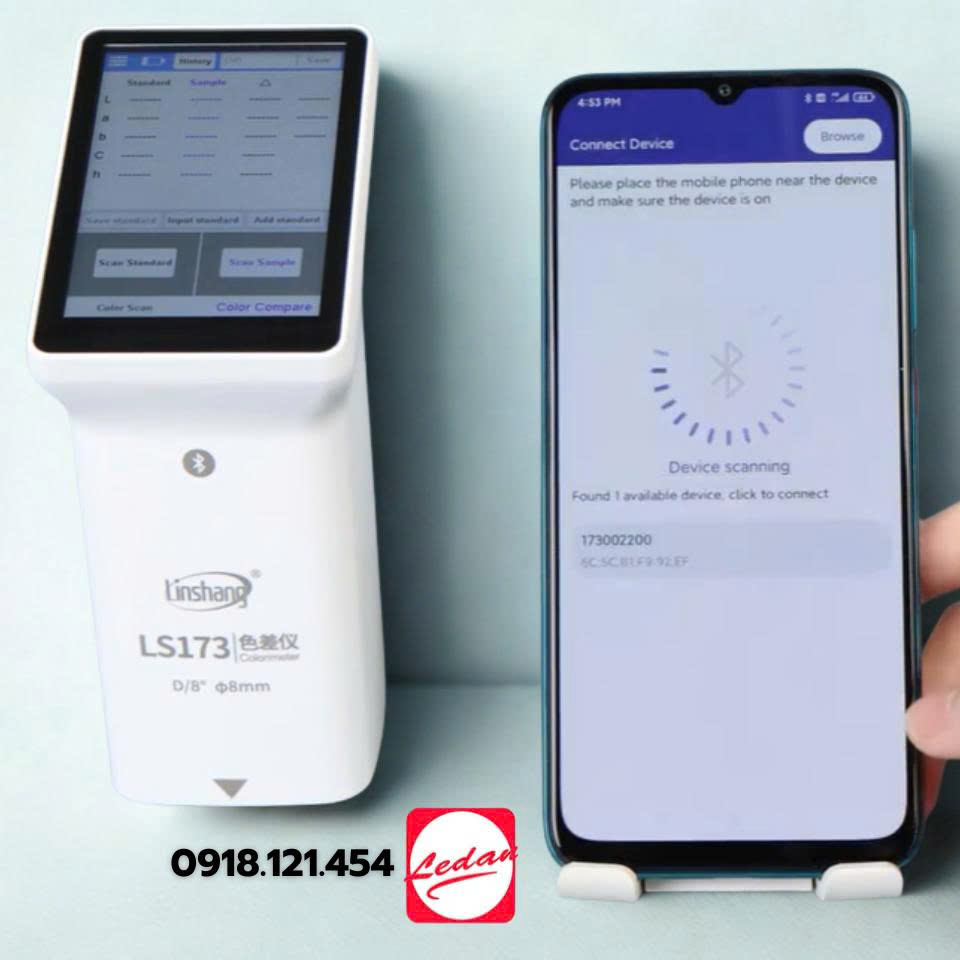

• LS173 (D/8
Spectral, SCI): Measures spectrum 400–700 nm, displays reflectance curve,
large battery. Used for detailed color analysis (textile, paint). Repeatability
ΔE*ab ≤ 0.03.
• LS175
(45/0 Colorimeter): 20 mm aperture, 3.5" IPS screen. Measures uneven
samples (raw fabric, grain paint). Repeatability ΔE*ab ≤ 0.03.

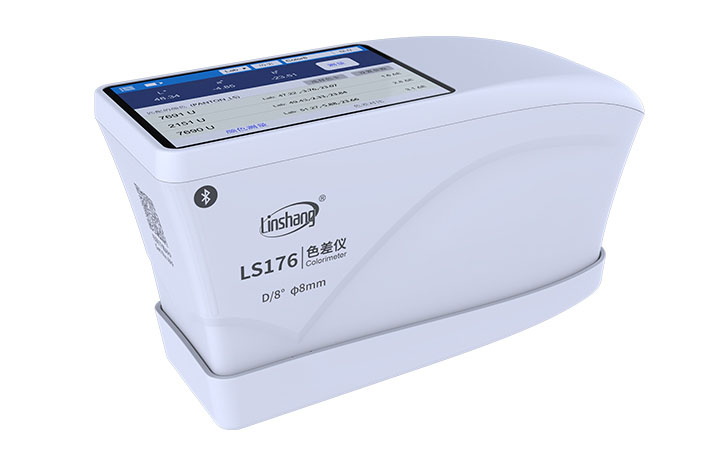

• LS176
(Spectrophotometer): Multi-function, displays spectrum and color code.
Suitable for small labs, QC in the factory. Repeatability ΔE*ab ≤ 0.03.

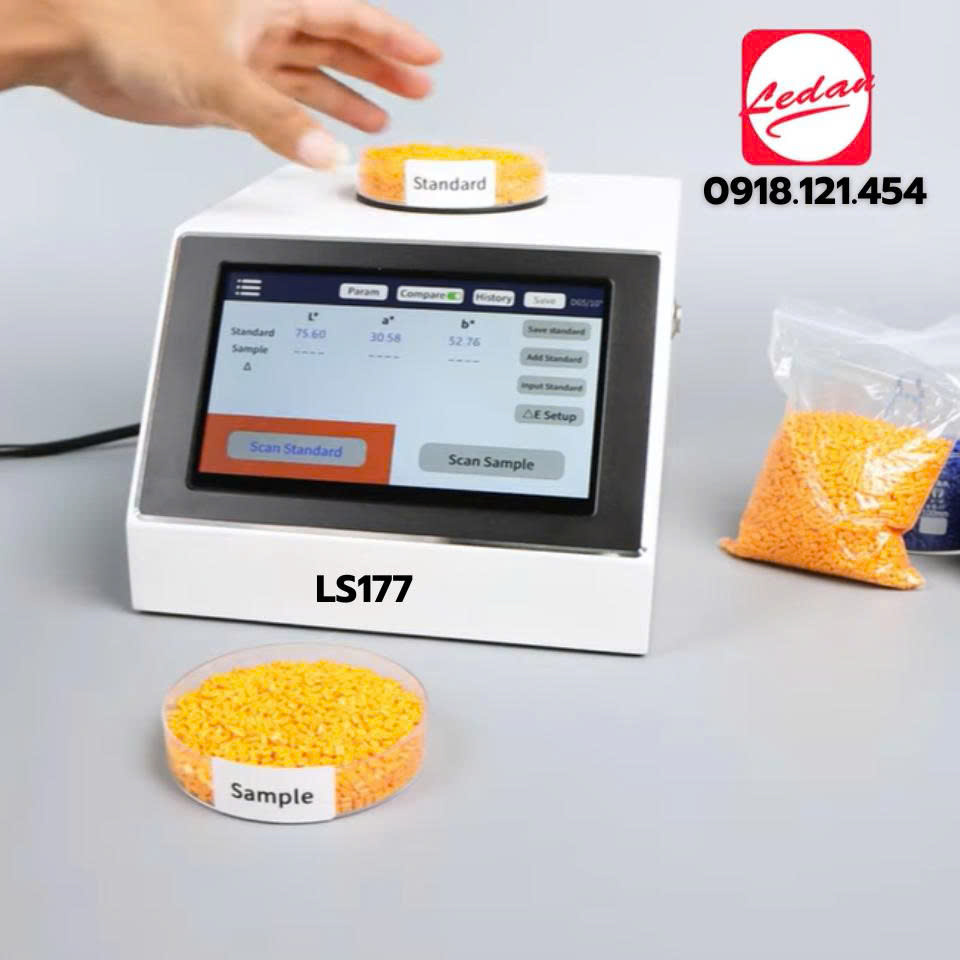

• LS177 (D/8
Spectrocolorimeter): Aperture 50 mm, measuring large/bulk samples (powder,
masterbatch). Spectrum display, APP/PC connection. Repeatability ΔE*ab ≤ 0.03.
• LS177C
(Coffee Colorimeter): Aperture 50 mm, 7" screen, measuring coffee
color (SCAA, HCCI). Support chart, APP/PC. Repeatability ΔE*ab ≤ 0.03.
SUGGESTIONS
FOR CHOOSING A MACHINE
• Detailed
spectrum analysis: LS173, LS176, LS177.
• Fast, compact
measurement: LS171, LS172, LS175.
• Specialty
coffee: LS177C.
• Uneven
samples: LS175, LS177, LS177C (aperture 20–50 mm).
COMPARISON TABLE
|
Model
|
Type/Geometry
|
Aperture
|
Repeatability (ΔE*ab)
|
Uniformity
(ΔE*ab)
|
Remarks
|
|
LS171
|
D/8 Colorimeter
|
8 mm
|
≤ 0.03
|
≤ 0.4
|
Compact, APP required.
|
|
LS172
|
45/0 Colorimeter
|
8–10 mm
|
≤ 0.03
|
≤ 0.4
|
3.5" IPS display.
|
|
LS173
|
D/8 Spectral, SCI
|
8–10 mm
|
≤ 0.03
|
≤ 0.4
|
Spectral measurement, reflectance display
|
|
LS175
|
45/0 Colorimeter
|
20 mm
|
≤ 0.03
|
≤ 0.4
|
Non-uniform samples
|
|
LS176
|
Spectrophotometer
|
8–10 mm
|
≤ 0.03
|
≤ 0.4
|
Versatile, measures spectrum
|
|
LS177
|
D/8 Spectrocolorimeter
|
50 mm
|
≤ 0.03
|
≤ 0.4
|
Large sample/block
|
|
LS177C
|
Coffee Colorimeter
|
50 mm
|
≤ 0.03
|
≤ 0.4
|
Specialized in coffee (SCAA/HCCI)
|
