Laboratory equipment

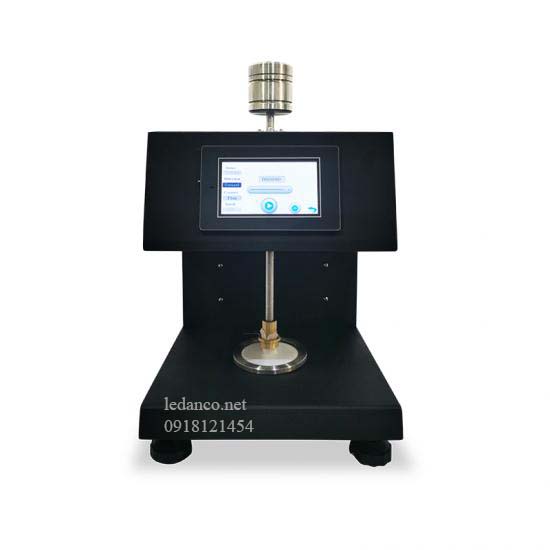

Rotary Vertical Crockmeter to determine the color fastness
of textile to dry or wet rubbing particularly for printer fabrics.

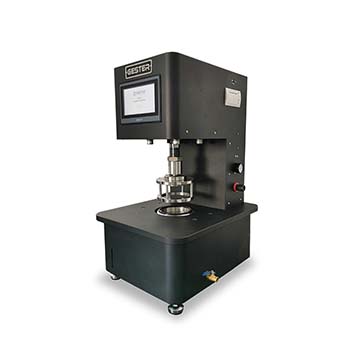

High pressure-servo Fabric Hydrostatic Head Pressure Test
Machine is used to test the waterproofing work such as canvas, coated fabrics
and geotextile, hood fabrics geotextile
Machine is equipped with Japanese servo electric motor, Computerized with software in Windows , PC Connection.
Aluminium body, light and strong.
- Model number: YG026C
- Measuring range: 500N/1000N/2000N/3000N/5000N
- Force-measuring accuracy: <+-0.5%
- Clamping distance: 50-400mm
- Stretching velocity: 10-400mm/min
- Elongation resoltion: 0.01mm
- Clamp holder width: 50mm
- Dimensions: 600*430*1250mm (L*W*H)
- Power source: AC220V, 50HZ, 0.5KW
Textile Formaldehyde Content Tester is a device that uses a 5 "LCD graphic display and an external thermal printer as display and output devices to clearly display test results and reminders during operation. Thermal printers can easily print test results for data reports and Save;
- Single chip computer program that controls temperature and time, with integral proportional adjustment (PID) function, the temperature does not exceed the level and the test results are more accurate;
- Imported surface temperature sensor precisely controls temperature;
- Fully digital control circuit, no interference.
Bursting Strength Tester is applied to determine the bursting strength test and distension at burst of woven, knitted and non woven fabrics, papers and boards by the application of hydraulic load under a rubber diaphragm.
This Washing Fastness Tester apply to test dyeing textile color fastness changing degree after washing, it not only do washing color fastness and also dry washing color fastness test.
- The Falling-Pendulum Type Tearing Tester is used to check the tear strength of textiles, nonwovens, paper, glossy covers, etc.
- Controlled by simple LCD screen, easy to operate.
- The processor can automatically store and recommend installation data according to certain standards.
- High precision.

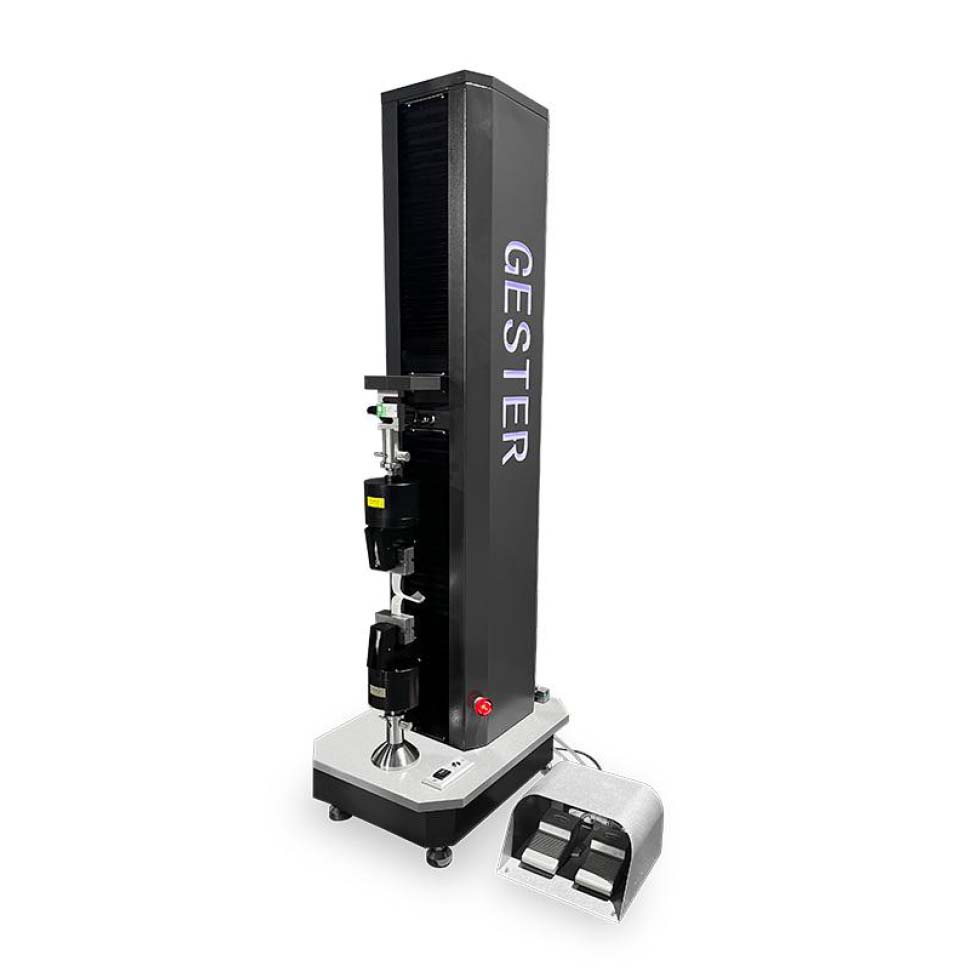

- GT-UA03 Tensile Test Machine is applied to the test of mechanical property like tension, compressio, bending, shear , tear, peel of materials such as rubber, plastic, aluminum tube, composite materials, waterproof materials, prevention material, yarn, fiber, wire and cable, paper, spring, wood, packaging materials, adhesive tape, etc. And it can also fulfill the multi-closed loop test like constant stress, constant strain, creep, slack, etc.
- When it installs with special device, it can do other test items like reversion, cupping.
The design and construction of the Crease Recovery Tester and loading device facilitate the test as well as rapid and easy measurements of the crease recovery angle.
- Model: GT-MB03
- Material: stainless steel.
- Dimensions: 41 x 41 x 66 mm(L x W x H)
- The tolerance of dimension: 0.1mm
- Inner diameter: 31.7mm
- Weight: 438g
- Model: GT-C09B
- Material: Stainless steel
- Impact mass: 0.84 kg
- Testing height: 33mm, 44mm, 67mm, 83mm, 95mm, 117mm, 200mm
- Dimensions: 238 x 200 x 342 mm
- Weight: 2.6 kg
- Wrap Reel Machine, to produce skeins of yarn of a pre-determined length and number of turns for count and strength testing. 1 Metre, 36″ or 54″ circumference collapsible swift (specify).
- Wrap reel Complete with yarn package stand and pre-tension device, fitted with pre-determined counter.
- Inner Box Dimension: 457x457x457mm (18 Inches)
- Rotation Speed: 48±2 r/min
- Counting range: 0-9999r
- Rubber stoppers: 24 pcs (total 0.57kg)
- Instrument Dimension: 850x780x670mm
- Packing Dimension: 1120x720x860mm
- Weight: 75kgs
- Power: 220V±10%, 50Hz
- Match to NK/HP series force gauge;
- Both vertical and horizontal installation;
- Manual operation, easy and stable to operate;
- With wheel handle;
- Match to NK/HP series force gauge;
- Both vertical and horizontal installation;
- Manual operation, easy and stable to operate;
- With wheel handle;
- Test loading: 1143g / 11.1±0.5N
- Rubbing head diameter: 16mm
- Sample size: ≥25×25mm
- Crockmeter cloth size: 51×51mm
- Dimensions: 266 x 150 x 210 mm
- Weight: 6 kg
- Fabric permeability testing equipment QC-305 can test water-repellent or water-repellent textile surface water resistance.
- Clamp cloth with 45 degree angle on clamp, 150mm diameter plane, place sprayer on top of 150mm sample, spray 250ml water from 45 degree angle to sample surface within 25-30 seconds.
- Compare after testing the sample soaked conditions according to the classification levels from the standards.
QC-319 for textile, leather and fluff dyeing fastness test equipment. Test hammer surface can clamp dry or wet by organic solvent white cloth, abrasion head select 200g or 500g load, speed 30CPM to proceed with back and forth abrasion, after reaching test times, observing the level of color contamination on white cloth to determine dyeing abrasion fastness level.
Application:
The GT-MB01 Sharp Edge Tester used to determine that metal or glass edges on toys and other articles in for use by children under 8 years of age, and such edges exposed in normal use or as a result of reasonably forseeable damage or abuse of such toys and articles, present a potential risk of injury by laceration or avulsion.
Application:
Sharp Point Tester is used to determinate that points on toys and other articles intended for children under 8 years of age, and such points exposed in normal use or as a result of reaso foreseeable damage or abuse of such toys and articles, present a potential risk of injury by puncture or laceration.
Perspiration tester GT-D09 apply for testing perspiration resistance color fastness of all kinds of textile materials & dyeing, colorful textile and test for their perspiration resistance, waterproof, seawater resistance, saliva resistance, chlorine bleach resistance, etamsy late resistance and performance.
- Perspiration Tester to determine colour fastness test to water, sea water, perspiration fastness in textiles and sublimation during storage.
- Perspiration tester consists of 2 stainless steel frame with 21 acrylic separator plates to hold 20 samples. Thus the both ISO/AATCC test methods can be done in one time. 20 plastic basins are equipped for pre-treatment of samples.

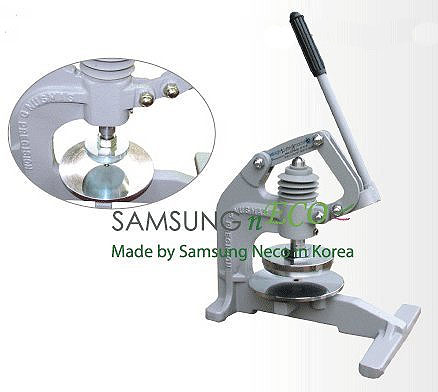

- The cutting knife produces a product with a high precision size: 112.843x3.14159 = 10,000 mm / 2 to ensure accuracy for the product.
- The product after cutting has high precision, neat cut lines, no wrinkles, no wrinkles.
- It can cut many types of fabric, knitting and thick leather in the simplest way and has many choices for users.
