Carton Sealer
- The FXJ-4030 carton sealer is used to glue the upper and lower sides of the carton during product packaging.
- Copper-conductive PVC conveyors are installed on the sides of the machine, making it easier and faster to apply tape to the product box.
- FXJ-4030 carton sealer is designed to paste small sized carton boxes that other models cannot affix.
Specifications:
- Model: FXJ5050I
- Conveyor Speed: 20m/min
- Max. Packager Size: W500×H500mm
- Min. Packager Size: W100×H100mm
- Width Of Tape: 36mm,48mm,50mm,60mm
- Power Supply: 110V,220-240V/50-60Hz
- Power Consumption: 0.18KVA
- Machine Size: 1660×850×1260mm
- Machine Weight: 120kg
- Manually adjust the height and the width for different size of cartons;
- Advanced pneumatic control system compare with the complicated electrical control system
- carton sealer will Fold the top covers automatically, side belts driven top and bottom sealing
- Cutter Safety system to prevent hands form stabbed by the cutter
Specifications:
- Model: FXJ6050
- Conveyor Speed: 20m/min
- Max. Packager Size: W500×H600mm
- Min. Packager Size: W150×H120mm
- Width Of Tape: 36mm,48mm,50mm,60mm
- Power Supply: 110V,220-240V/50-60Hz
- Power Consumption: 0.18KVA
- Machine Size: 1630×800×1330mm
- Machine Weight: 145kg
- Manually adjust the height and the width for sealing different sizes of cartons;
- Top and Side belts driven; top and bottom sealing
- Cutter Safety system to prevent hands form stabbed by the cutter
- Better used for heavy cartons sealing
- Automatically adjust the height and the width for different size of cartons;
- Carton sealer is Advanced pneumatic control system compare with the complicated electrical control system;
- Side belts driven; top and bottom sealing;
- Universal type, fit for all kinds of cartons sealing.
- Model: GPA-50
- Production speed: 0-20ctns/min
- Carton size(mm): L150-∞xW150-500xH120-500
- Power supply: 220/380V、50HZ
- Power capacity: 240W
- Adhesive tape width: 48/60/75MM
- Machine dimension: L1020xW850xH1350 mm
- Machine weight: 130KG
- The parts of carton sealer is Imported include electrical and pneumatic components;
- Automatically adjust the height and the width for different size of cartons;
- Advanced pneumatic control system compare with the complicated electrical control system;
- Side and top belts driven; top and bottom sealing;
- Cutter Safety system to prevent hands form stabbed by the cutter;

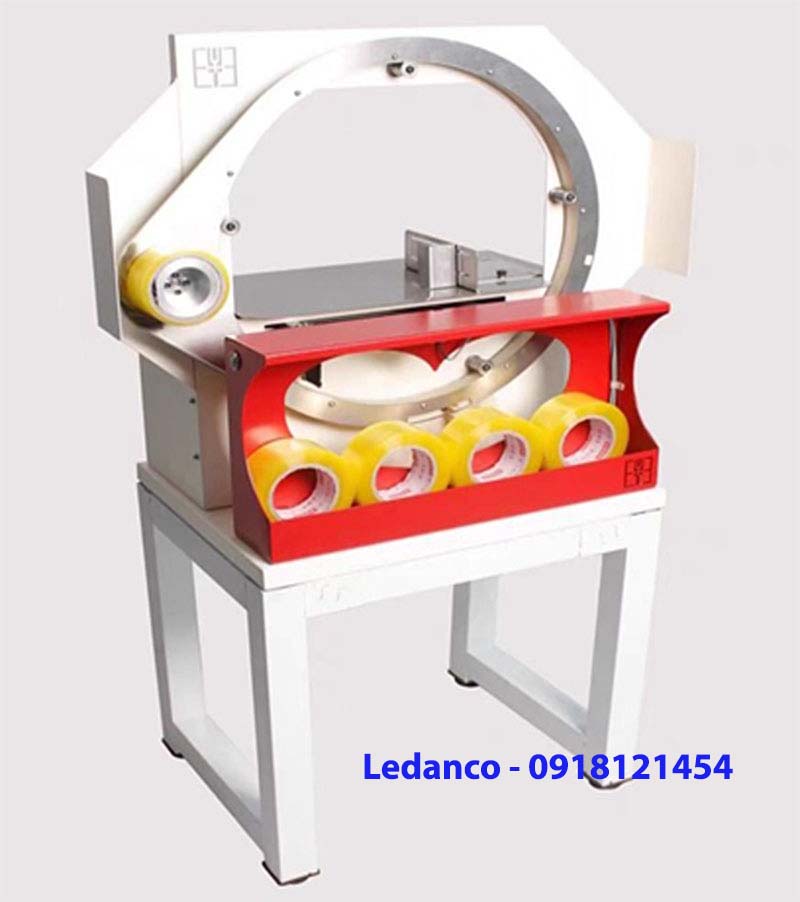

The SMART-40 carton box tape wrapping machine
is an indispensable tool in product packaging. It helps mechanize the wrapping
of tape around carton boxes, perfecting the product presentation, preparing for
shipping, delivery, standardization of parcels...

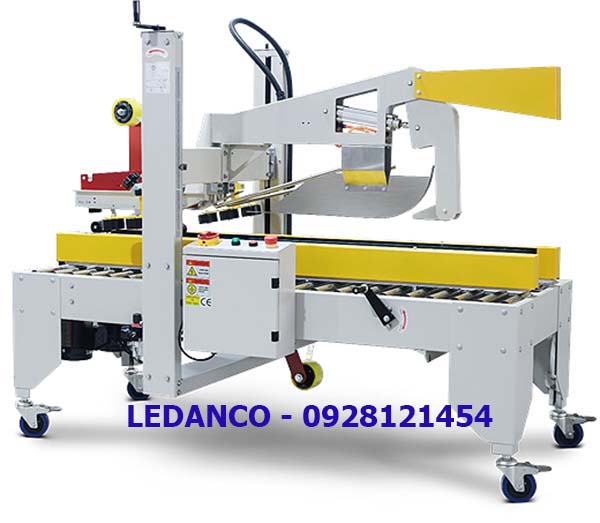

MÁY GẤP VÀ DÁN THÙNG TỰ ĐỘNG GPC-50D được sử dụng trong
các dây chuyền đóng gói hoặc được sử dụng độc lập cho việc gấp các thùng
carton, sau đó dán cả mặt trên và mặt dưới hoàn toàn tự động.
Máy hoàn động rất hiệu quả, thao tác chính xác, gấp gọn
gàng, chất lượng công việc dán niêm phong cao.
Máy được sử dụng rộng rãi trong các ngành thược phẩm,
thuốc men, hóa chất, nước giải khát, thuốc lá, ô tô, điện tử, sản xuất dây cáp điện
và các ngành công nghiệp khác…
Máy dán thùng Carton BROTHER AS-823A dễ sử dụng, linh hoạt và hiệu quả cao, là công cụ không thể thiếu cho các dây chuyền sản xuất thực phẩm, mỹ phẩm, dệt may, bách hóa, thủy sản..v..v.
GURKY GPA-50E CARTON SEALER - driven
by belts on both sides, it is sealed with sticky tape and the top and bottom
sealing is fast and stable, and the sealing effect is smooth, standadized and
beautiful
Auto tape around machine is designed to seal sealing tape on the lid of the cake box, level box, ... in the food industry. The machine has a conveyor system so it can be used separately or in combination with a closed production line
- Vertical storage, cartons can be added at any time without stopping the machine;
- Suitable for forming and sealing cartons of the same size.
- Manually adjust to change the carton sizes(finishing in 2-3minutes);
- Case erector adopt Advanced photoelectricity induction control system
- Rationally designed, the forming, folding and sealing process are accomplished simultaneously;
- Cutter Safety system to prevent hands form stabbed by the cutter
- Model: GPA-50W
- Production speed: 0-20 ctns/min
- Carton size(mm): L150-∞ x W150-500 x H50-800 mm
- Power supply: 220/380V, 50 / 60 HZ
- Power: 240W
- Adhesive tape width: 48/60/75mm
- Machine dimension: L1020 x W850 x H650 mm
- Machine weight: 80KG
- The Gurki GPB-56 Carton Sealer fit for long period single carton size packing.
- Easy carton size change over.
- Standard machine height can reach to 600 mm, more packing range without customize.
- Machine can be used in many industries.
Model | FXJ6050B |
Conveyor Speed | 16m/min |
Max.Packager Size | W500×H600mm |
Min. Packager Size | W110×H150mm |
Power Supply | 110V,220-240V/50-60Hz |
Power Consumption | 300W |
Width Of Tape | 36mm，48mm，60mm |
Machine Size | 1730×850×1380mm |
Machine Weight | 145kg |

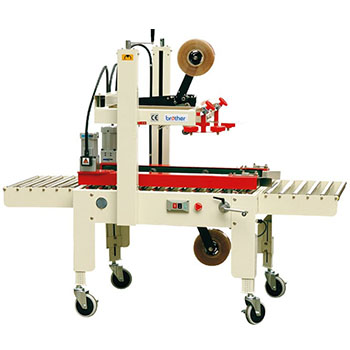

| Model | AS523 |
| Conveyor Speed | 20m/min |
| Max. Packager Size | W500×H580mm |
| Min. Packager Size | W100×H80mm |
| Width Of Tape | 36mm,48mm,50mm,60mm |
| Power Supply | 110V,220-240V/50-60Hz |
| Power Consumption | 0.18KVA |
| Machine Size | 1740×850×1330mm |
| Machine Weight | 160kg |

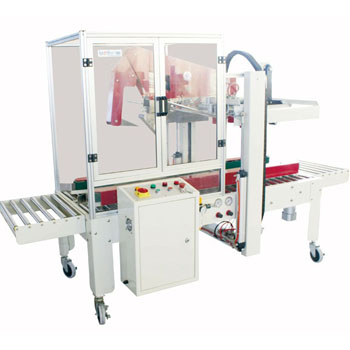

The FX-AT5050B automatic carton sealer has the ability to automatically fold the lid and adjust the height to glue the tape to many types of barrels of different sizes.Model | FX-AT5050B |
Power supply | 220V/50-60Hz |
Power | 0.24KW |
Min.Packager size | L200×W120×H120mm |
Max.Packager size | L600×W500×H500mm |
Conveyor speed | 16m/min. |
Use gas source | 300L/min |
Width of tape | 36mm,48mm,60mm |
Machine size | L1780×W950×H1640mm |
Machine weight | 260kg |

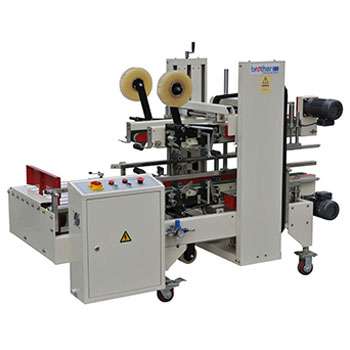

Model | AS723 |
Conveyor Speed | 6-10boxes/min |
Max. Packager Size | L500×W500×H500mm |
Min. Packager Size | L320×W200×H180mm |
Width Of Tape | 36mm,48mm,50mm,60mm |
Power Supply | 220-380V/50-60Hz |
Use Gas Source | 6kg, f/cm2-150nl/min |
Machine Size | 1900×1130×1530mm |
Machine Weight | 380kg |

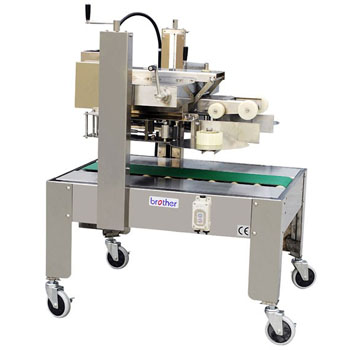

Model | AS623 |
Conveyor Speed | 18m/min |
Range Of Box Dimensions | L150mm-∞，W260-460mm,H100-500mm |
Adhesive Band Used | OPP,BOPP,PV |
Width Of Tape | 36mm,48mm,60mm |
Power Supply | 110V,220-240V/50-60Hz |
Height Of Working Table | 0.24KVA |
Machine Size | 1000×900×1300mm |
Machine Weight | 160kg |

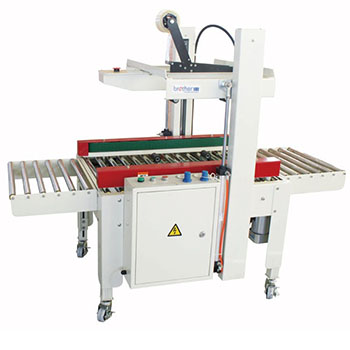

Model | AS823 |
Conveyor Speed | 18m/min |
Max. Packager Size | L150mm-∞，W150-500mm,H120-500mm |
Min. Packager Size | OPP,BOPP,PV |
Width Of Tape | 36mm,48mm,60mm |
Power Supply | 110V,220-240V/50-60Hz / 0.18KVA |
Power Consumption | 750 W |
Machine Size | 1045×800×1270mm |
Machine Weight | 130kg |

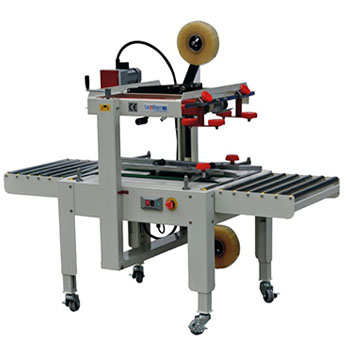

Model | FXJ5050II |
Conveyor Speed | 20m/min |
Max. Packager Size | W500×H500mm |
Min. Packager Size | W150×H120mm |
Width Of Tape | 36mm,48mm,50mm,60mm |
Power Supply | 110V,220-240V/50-60Hz |
Power Consumption | 0.18KVA |
Machine Size | 1630×800×1230mm |
Machine Weight | 145kg |
Model | FXJ6060 |
Conveyor Speed | 20m/min |
Max. Packager Size | W600×H600mm |
Min. Packager Size | W150×H110mm |
Width Of Tape | 36mm,48mm,50mm,60mm |
Power Supply | 110V,220-240V/50-60Hz |
Power Consumption | 0.24KVA |
Machine Size | 1830×840×1330mm |
Machine Weight | 160kg |
