Glue Tape Cutting Machine
Application of Yeasu ZCUT-9GR automatic glue tape cutting machine:
Yeasu ZCUT-9GR automatic glue tape cutting machine is a device used to cut tape automatically. Fast tape cutting machine, high efficiency, save time and reduce costs.
Application of Yaesu ZCUT-9 tape cutting machine:
Yaesu ZCUT-9 tape cutting machine automatically cuts tape, which can cut two rolls of tape at once. High speed tape cutting machine, high efficiency, saving time and manpower.
Application of M-1000S tape cutter:
M-1000S automatic glue tape cutting Machine automatically cut or adjust by hand, can adjust the width and length of tape. The M-1000S tape cutter is easy to use, has high accuracy and good performance.
APPLICATION OF YEASU ZCUT-2 CUTTING MACHINE:
The Yaesu Zcut-2 tape cutter is an automatic tape cutter. The machine is able to cut various types of duct tape with fast speed, increase productivity, bring high efficiency and reduce costs.
- Model: BJ-20S
- Control Model: RAM control system
- Cutter: High speed steel
- Available Width: 0.1 ~ 200 mm
- Available Length: 1 ~ 100m
- Speed: 150 pcs/min
- Accuracy: ± 0.1mm
- Power Supply: AC110V 60Hz / AC220V 50Hz 250W
- Measurement: (L)360×(W)350×(H)350mm
- Weight: 36 Kg
- Display: LCD
- Operation Language: English or Chinese
Automatic Tape Dispenser IGK-8000 and IGK-1500 operate smoothly, fast and flexibly.
Máy cắt băng keo tự động hoạt động khi người sử dụng nhấn nút khởi động, máy sẽ cắt băng keo thành các đoạn có chiều dài quy định và đính vào 1 đĩa tròn, sẵng sàng lấy ra sử dụng.
Model exactly as follows:
- Better Pack 555eS
- Better Pack 555eL
- Better Pack 555eSA
- Better Pack 555eLA
- Better Pack 555eMA
- Better Pack 555eFA
- Better Pack 555eFACM
- Better Pack 555eJA
The Better Pack 333 is a rugged, reliable, simple-to-use manual water-activated tape dispenser. (The Better Pack 333 is also known as a paper tape dispenser, gummed tape dispenser or gum tape machine etc.). The Better Pack 333 has 15 preset tape lengths measured in inches on a dial.
- Accepts width: 7-50mm
- Adjustable tape length: 30-999mm (1mm intervals)
- Max outside diameter: 180mm
- Power supply: 100V, 117V, 230V
- Size: 137(W) x 249(L) x156(H) mm
- Weight: 2,500g
- No wheel design
- Cutting the maximum width of 60mm
- Memory function (before the job is free to set six different lengths of demand for use)
- Film can be easily fixed through the elastic film auxiliary shaft Preset, loop and job count functions
- Two rolls of tape can be used at the same time
- Protection devices, knife edge plus security shield
The Autotek A-2000 Tape cutting machine is used to cut adhesive or non-adhesive tape by automatic mode and manual adjustment. The machine can stack 2-3 rolls of tape to cut and adjust the cutting length.
Ezmro RT-7000 tape cutter with the ability to automatically cut sticky or non-adhesive tape that has pre-set cutting length and cut various types of tape. A quick and time-saving machine should be used a lot in packaging and pasting products. Adhesive tape cutters are widely used in all industries
- Tape width: 3-25mm
- Tape cutting lenght: 8-70mm
- Recommended Tapes:Cellophane Tape, Papre Tape, Cotton Cloth Tape, PP Tape, Acetate Cloth Tape
- Max. Outside Dia. of Roll: free
- Power Requirements:AC 110/220V 50/60Hz, 40W
- Dimensions:130mm(D) * 260mm(W) * 145mm(H)
- N.W:1.9kgs
- Model: BJ-30S
- Control Model: RAM control system
- Cutter: High speed steel
- Available Width: 0.1 ~ 300 mm
- Available Length: 1 ~ 100m
- Speed: 150 pcs/min
- Accuracy: ± 0.1mm
- Power Supply: AC110V 60Hz / AC220V 50Hz 250W
- Measurement: (L)360×(W)380×(H)350mm
- Weight: 38 Kg
- Display: LCD
- Operation Language: English or Chinese
- Heavy duty, high speed, high accuracy, designed for cutting non-adhesive materials.

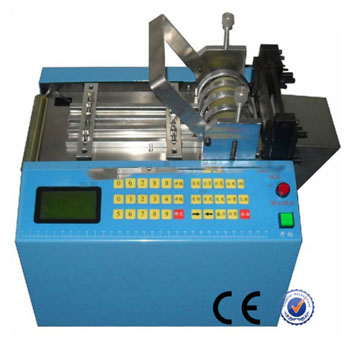

- Model: BJ-10S
- Control Model: RAM control system
- Cutter: import SKD – 11 High speed steel
- Available Width: 0.1 ~ 100 mm
- Available Length: 1 ~ 100m
- Speed: 150 pcs/min
- Accuracy: ± 0.1mm
- Power Supply: AC110V 60Hz / AC220V 50Hz 500W
- Measurement: (L)360×(W)300×(H)350mm
- Weight: 30 Kg
- Display: LCD
- Operation Language: English or Chinesea
- Cut Length:15-70mm
- Tape Width:3 - 25 mm
- Usable Tape:Filament, Kapton, Acetate, Glass Cloth, Double-Sided, Plastic, Aluminum Foil, Cellophane, Masking, polyethylene, Copper Foil Cotton, Cloth, Mylar, Teflon, Paper, and more.
- Max Outside Diameter:150mm
- Fuse:2A
- Power Requirements:AC 100V 50/60Hz 25W
- Body Material:ABS
- Dimensions:126 x 150 x 258 mm (W x H x D)
- Weight:1.9kg
- Places a cut length of tape from the side to the bottom of the box creating a secure, economical seal.
- Perfect for pharmaceuticals, medical, food service, bakery, parts packaging, and for sealing any small chip board or corrugated box.
- Applied most non-reinforced tapes up to 3/4 inch wide.
- Adjustable feed lengths from 3/4 inch to 1 5/8 inch by turning a knob on the front of the machine.
- Economical – saves tape and increases productivity.
- Easy micro-switch actuation.
- Machine: Length - 20 inch, Width - 9 inch, Height 10 inch
- Weight: 33 Lbs
- Tape Width: Maximum - 2 inch, Minimum - 1/2 inch
- Tape Length: Maximum - 3 3/4 inch, Minimum - 2 inch
- Core Size: 3 inch
- Power: 110 VAC
- Speed: 40 per minute
- Origin: USA
- Origin:Japan
- Model: BJ-P1
- Overall dimension 350L×165W×250Hmm
- Overall weight 10Kg
- Electical specifications AC100V,50W,50/60HZ
- Paper size 3 inches
- Tape width 12mm,15mm ,18mm ,24mm
- Speed 15-40 boxes/min
- Hole size 20mm~50mm (±1~2mm)
- Origin:Japan
- Model: BJ-P1
- Overall dimension: 350L×165W×220Hmm
- Overall weight: 9Kg
- Electical specifications: AC100V,6W,50/60HZ
- Label size: Max.Width 24xLength 45mmMin. Width 10xLength 15mm
- Paper size: Inner diameter: φ42-φ75mmOutter diameter: φ120mm~200mmφ
- Separate width: 28mm
- Speed: 15-40 boxes/min
- Options: (1) Counter (2)Label (φ190mm)
Specifications:- Cut Length: 5 - 999 mm
- Folding Length: 7 mm
- Tape Width: 6 - 60 mm
- Max. Outside Dia. of Roll: 300 ㎜
- Tape Thickness: 0.05 mm - 0.3 mm
- Usable Tapes: Craft, PP, Filament, Glass Cloth, Double-Sided, Strapping, Protective Film, Aluminum Foil, and Others
- Feeding Speed: 220 mm sec ･Approximately 50pcs/min.(in the case of cutting 100mm with craft tape)
- Accessories: Separator. Blade Oil. Guide Plate. Power Cord.
- Rated Voltage: 220V - 50/60Hz
- Dimensions: 116 mm(W)x148 mm(H)x223 mm(D)
- Weight: 1.6kg
- Made in: Japan

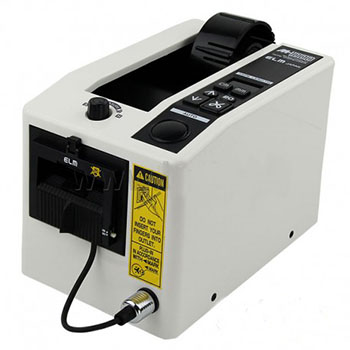

Technique of ELM M-1000 Automatic Tape Dispenser:
- Adhesive width: 7-50 mm
- Cutting length: 20-999 mm
- Setting length: digital count
- Display: 3 digits by LED
- Power supply: AC110V, 60Hz, AC220V, 50Hz, 18W
- Dimensions: 218x137x150mm
- Machine Weight: 3.5kg
- Made in: Japan
The HongJin RT-9000F Automatic Tape Dispenser has this mode get a front part of the tape about 8mm by FOLDING. This mode calls an input memory level sequentially and cuts tape. Can cut the cut length of the tape 2-6 kind each to be different.
