LOCKEDPAPER PROTECTIVE
PAPER WRAP SYSTEMS
If you are familiar
with traditional plastic bubble wraps or stretch films used to
wrap glass bottles, cosmetics, or ceramics for shipping, LockedPaper
Protective Paper Wrap is the perfect eco-friendly alternative made from
100% recyclable Kraft paper.
LOCKEDPAPER PROTECTIVE PAPER WRAP MACHINES :
The machine
automatically stretches or embosses flat Kraft paper rolls into:
1.
3D Honeycomb Paper Layer: The paper features smart mesh cuts.
When stretched by the machine, it expands into a 3D honeycomb structure that is
lightweight, elastic, and exceptional at absorbing shocks and impacts.
2.
Embossed Paper-Bubble Layer: The machine embosses
the paper into thousands of soft paper "bubbles" that act as a gentle
cushion to shield your items.
3.
Smooth Interleaf Paper Layer: A soft, thin inner
tissue layer that provides complete scratch protection for sensitive
surfaces such as lipstick tubes, perfume bottles, electronics, and glassware.
PICTURE IT SIMPLY:

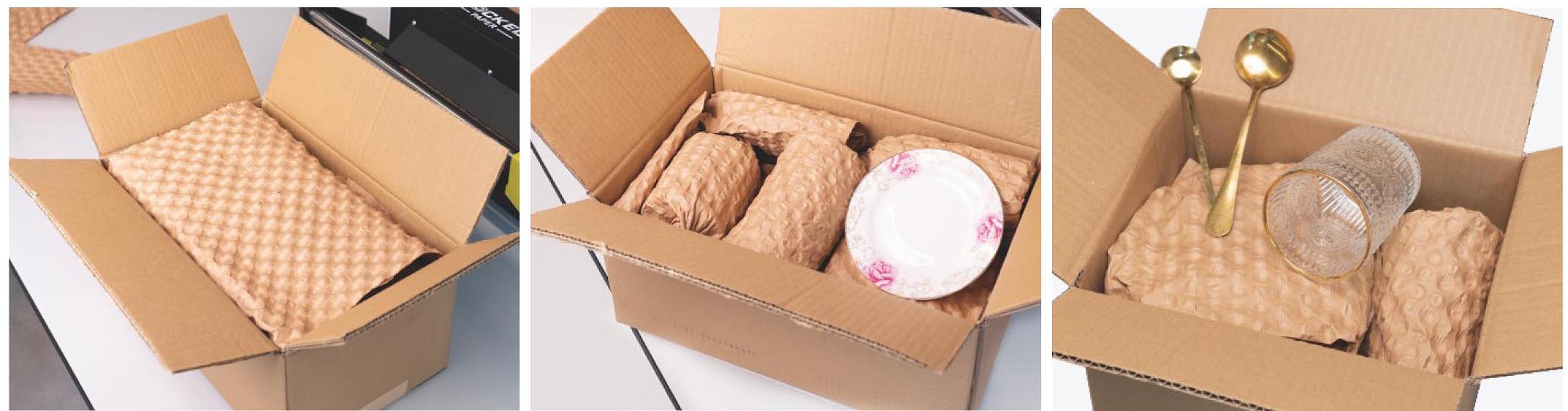

Instead of wrapping
plastic bubble film around your product, you simply feed a paper roll into the
LockedPaper machine. The machine instantly turns flat paper into a flexible,
protective 3D "paper blanket" that securely hugs your product while delivering
an elegant, premium unboxing experience.
WHY SHOULD BUSINESSES
SWITCH TO LOCKEDPAPER WRAP?
- Superior
Shock & Scratch Protection: The 3D honeycomb structure offers high
durability and elasticity, keeping products safe from drops and collisions
during transit.
- Material
Cost Savings (2:1 Stretch Ratio): 1 meter of flat paper expands up to 2
meters of protective wrap, significantly optimizing raw material costs.
- Elevate
Your Brand (Premium Unboxing Experience): Wrapping products
in natural Kraft paper creates a neat, modern, eco-friendly, and high-end
impression compared to plastic packaging.
- Ultra-Fast
Packaging Speed:
Quiet operation with fast output (up to 25–27 m/min). Safe, bladeless
automatic tearing/cutting allows staff to pack continuously with ease.
DETAILED MODELS &
TECHNICAL SPECIFICATIONS
Le Dan Company provides
full-spectrum solutions ranging from budget-friendly manual dispensers to
high-speed automatic systems:

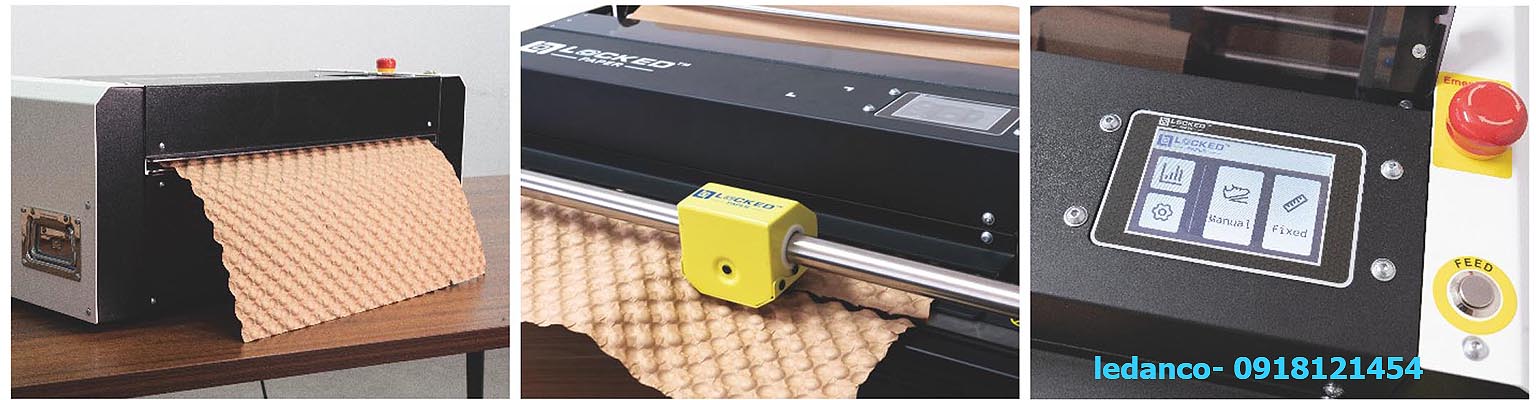

1. Embossed
Paper-Bubble Series – LP-IB500 Series
- How
it works:
Produces embossed paper-bubble wrap that directly replaces traditional
plastic bubble wrap.
- Models:

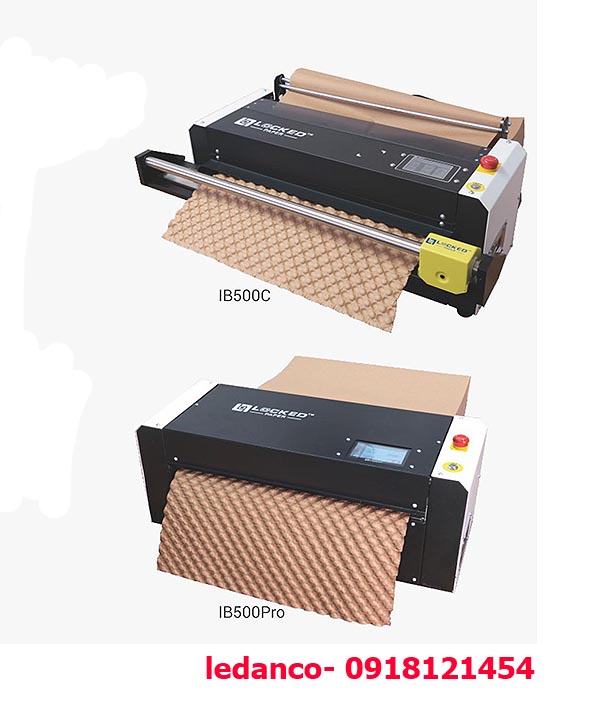

- LP-IB500C: Manual cutter
(Speed: 12 m/min, Power: 200W, Weight: 32 kg).
- LP-IB500 Pro: Smart, bladeless
auto-tear (High speed: 25 m/min, Power: 450W, Weight: 42.5 kg).
- LP-IB500 AC: Automatic cutter
(Speed: 12 m/min, Power: 200W, Weight: 38 kg).

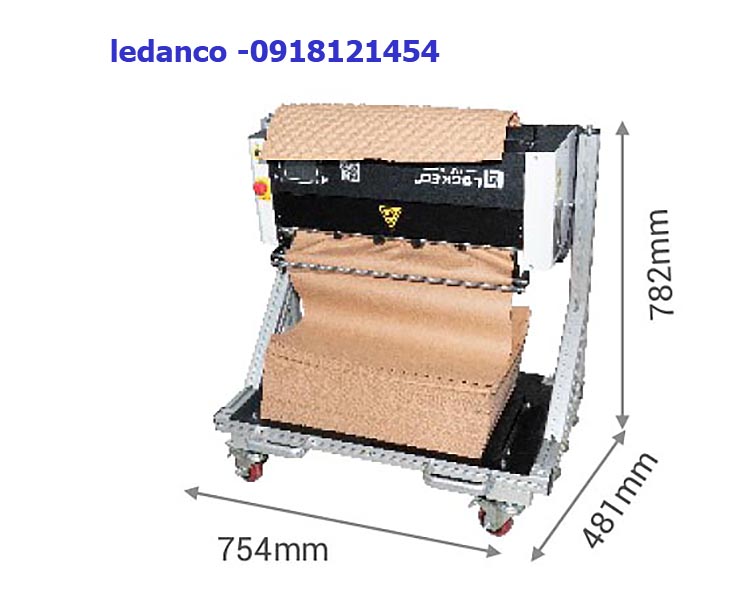

2. High-Speed Honeycomb
Paper Series – LP-HA Series
- How
it works:
Automatically stretches honeycomb paper while simultaneously feeding a
smooth anti-scratch inner tissue layer for rapid product wrapping in
seconds.
- Specifications: Ultra-fast speed
of 27 m/min, Power: 100W, Voltage: 200-240V. Available in
auto-cutter (LP-HA AC), manual cutter (LP-HA MC), or under-table stand
configurations.
3. Desktop Manual Paper
Dispensers – LP-H1 / H1S / H1M
- How
it works:
Simple mechanical desktop equipment operating without electricity.
Operators manually pull the paper to stretch it into a 3D honeycomb
structure.
- Key
Benefits:
Compact, extremely low investment cost, constant paper tension, ideal for
online boutiques, retail stores, and cosmetic shops.
PAPER CONSUMABLE
SPECIFICATIONS
|
Paper Type
|
PN Code
|
Description &
Dimensions
|
Primary Application
|
|
Paper Bubble Roll
(MPS)
|
90F01029 / 90F01030
|
Width: 300mm or
500mm, Length: 500m (Basis Weight: 80gsm)
|
Used with LP-IB500
machines for embossed bubble cushioning.
|
|
Honeycomb Paper (HEX)
|
90E01001
|
Width: 500mm, Length:
250m (Basis Weight: 80gsm)
|
Stretches into a 3D
shock-absorbing mesh.
|
|
Interleaf Paper (INT)
|
90N01001
|
Width: 300mm, Length:
840m (Basis Weight: 21gsm)
|
Soft inner layer to
prevent surface scratching.
|
Contact Le Dan Company
today
for real paper samples, live machine demonstrations, and the best competitive
quotation!
Delivery method: Nationwide.
- Free in city. HCM
- In the station or express delivery if the customer in outside the province (customers pay shipping costs themselves)
Commitment to customers:
==> Supplying genuine goods (CO / CQ attached), 100% new (with the original belt)
==> Ensure customer's interests when buying products while in warranty, and maintenance for life.
=============== ///=============
