AUTOMATIC SURFACE LABELING MACHINE - LS-170

Standing Automatic Surface Labeling Machine – Model SL-170.

Descriptions:

 SL-170 is an automatic plane labeling machine equipped with conveying equipment, suitable for automatic continuous plane labeling of boxes, plates and blocks. It has a wide range of applications, such as information labels on outer packaging boxes of products in food, daily chemicals, pharmaceuticals and other industries. It adopts man-machine interface touch screen operation and digital control over labeling actions, contributing to easy operation, automatic labeling, and stable and accurate positioning.

This machine can be equipped with a coder or inkjet printer to print dates of manufacture, batch numbers, bar codes and other information on the labels before labeling.

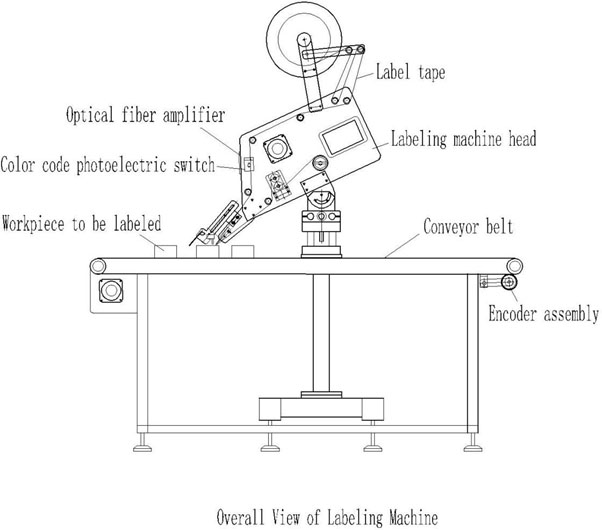

Working Principle:

• A workpiece moves linearly on the conveyor belt at a constant speed.
• When the workpiece moves to a certain position, the digital optical fiber sensor sends a labeling signal; and then the labeling motor will start to compete the actions of tape feeding, labeling and tape winding.
• Touch the screen manually to digitally control the labeling position (front and rear);
• Adjust the labeling position (horizontal) through the horizontal guide rail.
• Adjust the distance between the machine head and the conveyor belt through the height guide rail for workpieces with different heights.

Technical Parameters:

• Suitable label width: up to 130mm
• Suitable inner diameter of label: ø76mm
• Suitable for outer diameter oflabel : up to ø250mm
• Labeling speed: ≤300 sheets/min.
• Labeling accuracy: ± 1mm
• Conveying speed of workpiece: 5-30m/min.
• Overall dimensions of labeling workpiece: Length 40mm-400mm Width: 40mm-200mm
• Height: 2mm-350mm
• Maximum overall dimensions of machine (L×W×H): 840×650×1900mm (excluding the conveying table)
