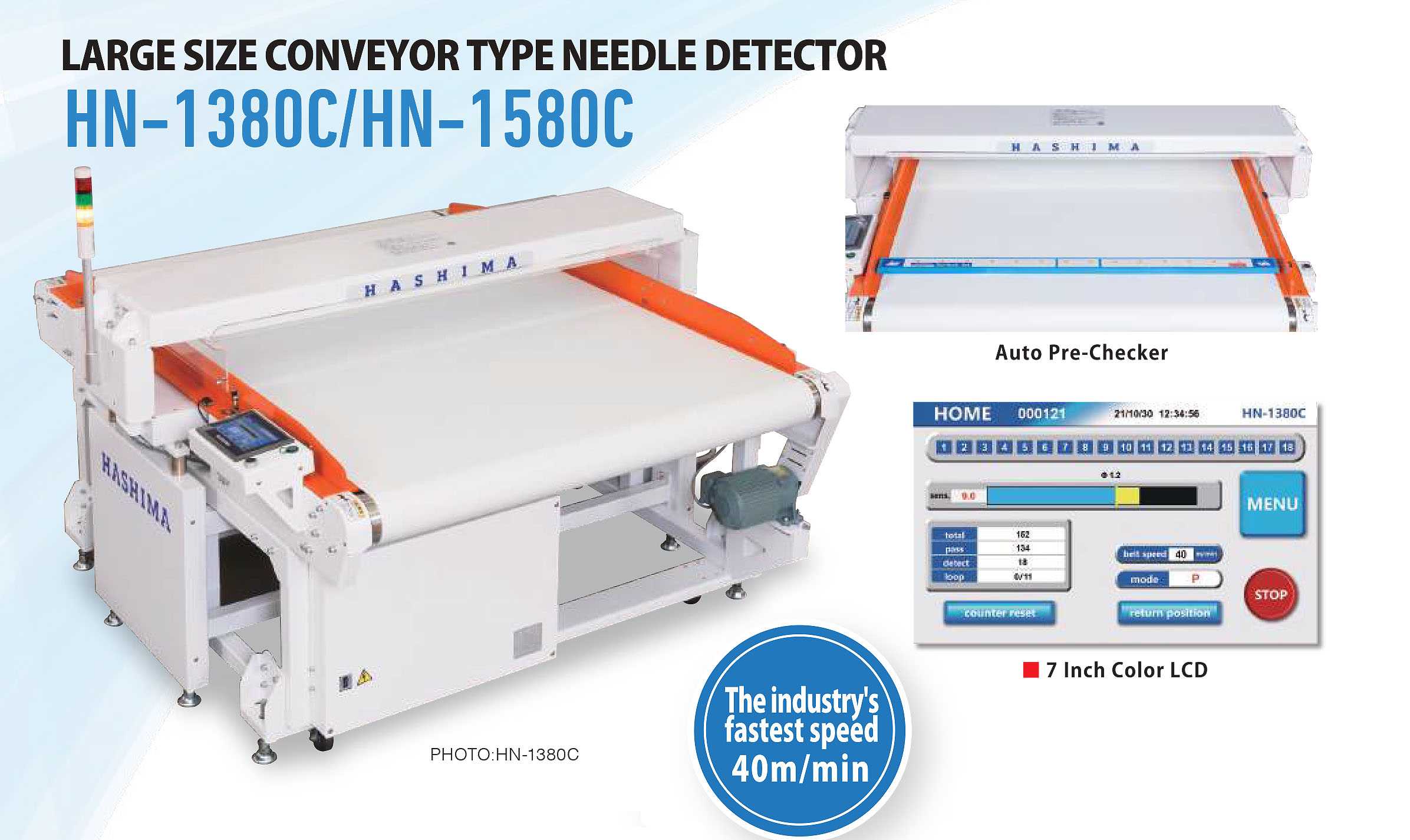

WIDE-WIDTH CONVEYOR BELT METAL DETECTOR HASHIMA HN-1380C /
HN-1580C –
WIDE-WIDTH CONVEYOR BELT METAL DETECTOR FOR HIGH-CAPACITY GARMENT
PRODUCTION LINES
In high-production
garment factories with large product sizes or bale packaging, broken needle
inspection requires a wide-width, highly stable metal detector capable of
continuous operation.
The HASHIMA HN-1380C
and HN-1580C are large-width conveyor belt metal detectors from HASHIMA
(Japan), designed for 100% finished product inspection with high efficiency,
meeting the stringent metal detection requirements of international brands.
GENERAL INTRODUCTION
Both HN-1380C and
HN-1580C utilize magnetic induction technology, enabling accurate detection of:
• Broken sewing
needles
• Iron (Fe) fragments
• Remaining metal
foreign objects in products or packages
The main difference
lies in the conveyor belt width, allowing factories to choose the model that
best suits their product size and production line scale.
KEY FEATURES &
CHARACTERISTICS
=>Wide Conveyor Belt – Suitable for Large Products
• HN-1380C: Large conveyor belt for
large-sized garment products
• HN-1580C: Very wide conveyor belt, suitable
for inspecting large packages and bundles
• Meets the needs of high-capacity sewing
lines
=>Stable Sensitivity – Reliable Needle Detection
• Detects Fe ≥ Ø0.8 mm (depending on
inspection conditions)
• Efficiently inspects a wide range of
products, from thin to thick
• Reduces false alarms, stable operation in
factory environments
=>Intuitive Error Reporting & Display System
• Light and buzzer alert when broken needles
are detected
• Supports quick identification of defective
products
• Helps in timely handling, preventing errors
from escaping
=>Industrial Design – Durable
• Robust construction, suitable for
multi-shift/day operation
• Low maintenance, long lifespan
• Easy to train workers Operation
APPLICAN SCOPE
HASHIMA HN-1380C /
HN-1580C is suitable for testing:
• Jackets, uniforms
• Large-sized garments
• Finished products
packaged in bundles
• Products before
warehousing & export
Especially suitable
for large-scale garment factories and high-volume export production lines.
MAIN SPECIFICATIONS
(FOR REFERENCE)
|
HN-1380C
|
HN-1580C
|
|
Model
|
HASHIMA HN-1380C
|
HASHIMA HN-1580C
|
|
|
Type
|
Conveyor Needle Detector
|
Conveyor Needle
Detector
|
|
|
Detection method
|
Magnetic Induction
|
Magnetic Induction
|
|
|
Detection width
|
1,300mm
|
1,500mm
|
|
|
Detection sensitive
|
Fe ≥ Ø1.2 mm
|
Fe ≥ Ø1.2 mm
|
|
|
Alarm method
|
Buzzer- Position
lamp
|
Buzzer- Position
lamp
|
|
|
Power source
|
AC 220V, 50Hz, 1
Phase
|
AC 220V, 50Hz, 1
Phase
|
|
|
Dimension
|
1,830(L)x1,800(W)x1,000(H)
|
1,830(L)x1,800(W)x1,000(H)
|
|
|
Weight
|
495 kgs
|
495 kgs
|
|
|
|
|
|
|
|
|
|
|
|
(Detailed
specifications may vary depending on the configuration and actual installation
conditions)
BENEFITS FOR GARMENT
BUSINESSES
✔
Efficient metal detection for large products & packages
✔
Meets international brand metal detection requirements
✔
Reduces the risk of defective goods – returned goods
✔
Standardizes the final inspection process line
✔
Suitable for high-capacity production lines and large-scale exports
